DIY Snowboard 2.0

Photos from when I made my brother a snowboard.  For my second go-around, I experimented with sidewall and a custom topsheet graphic.  I used a pre-fab wood core from snowboardmaterials.com.  The ABS sidewall came out pretty nice, but it was kind of a pain to do.  After doing this board I decided to start looking into other sidewall techniques.

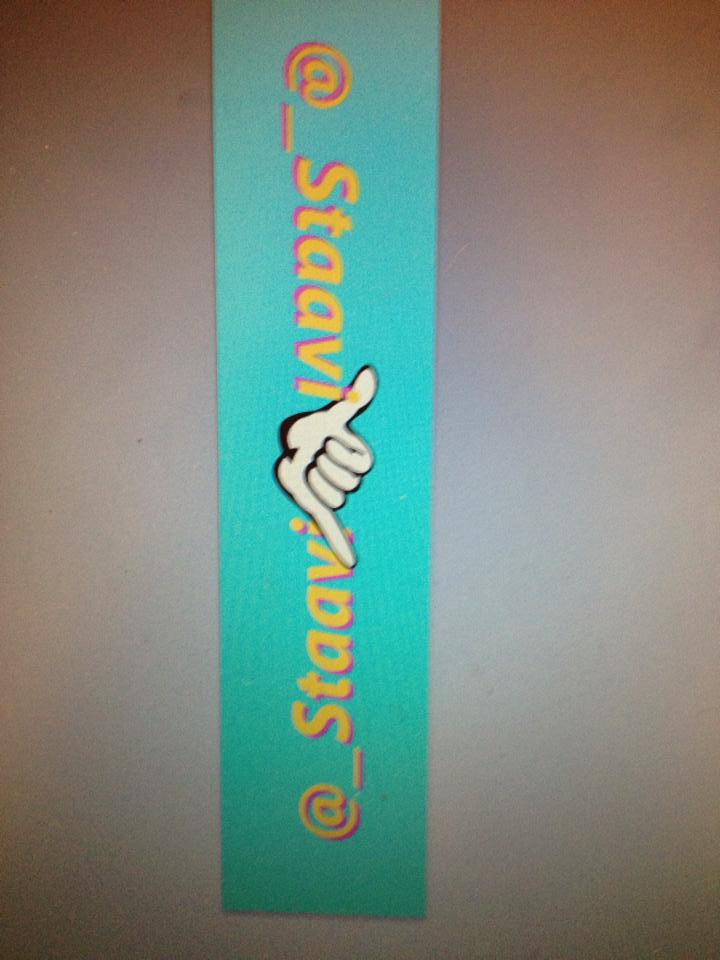

01
Base Graphic
02
Topsheet Graphic

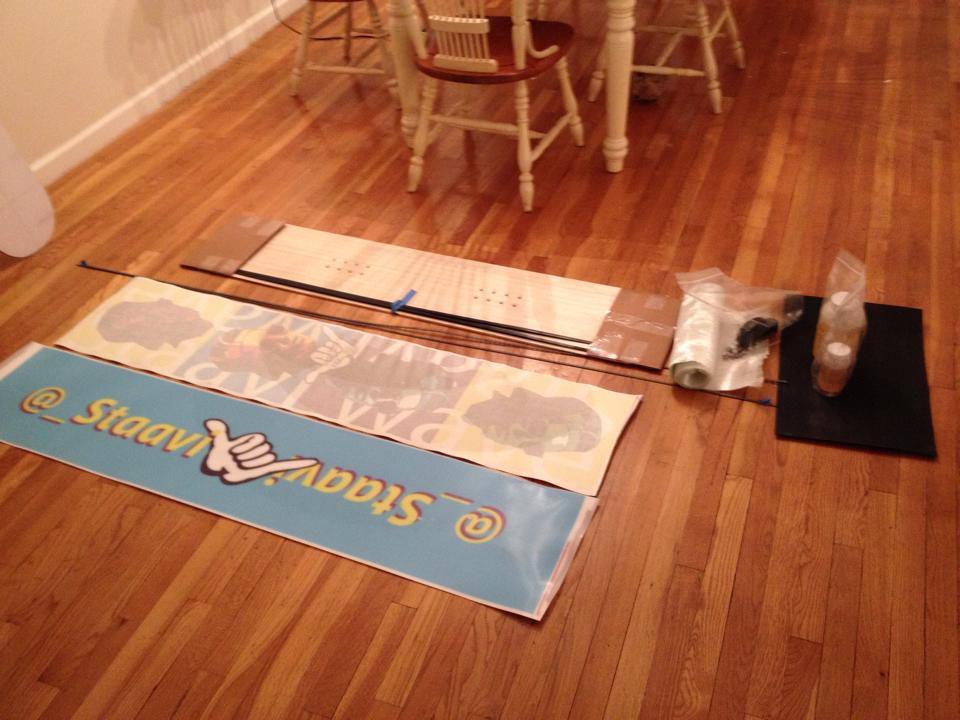

04
Materials Shipment!

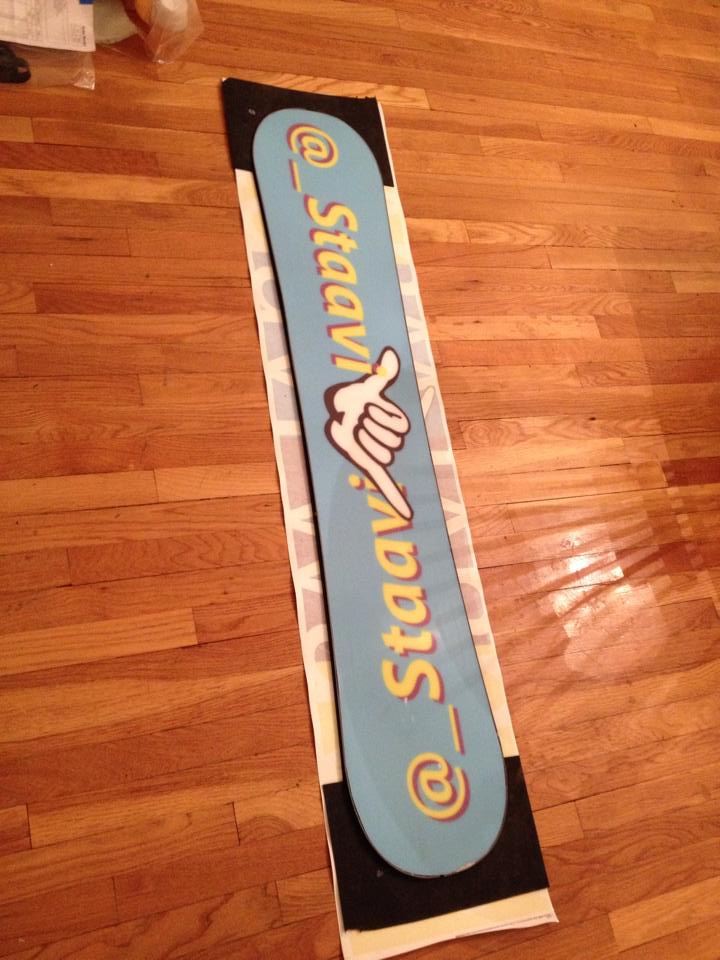

03
Materials ready for layup
05
Blank pre-fab wood core

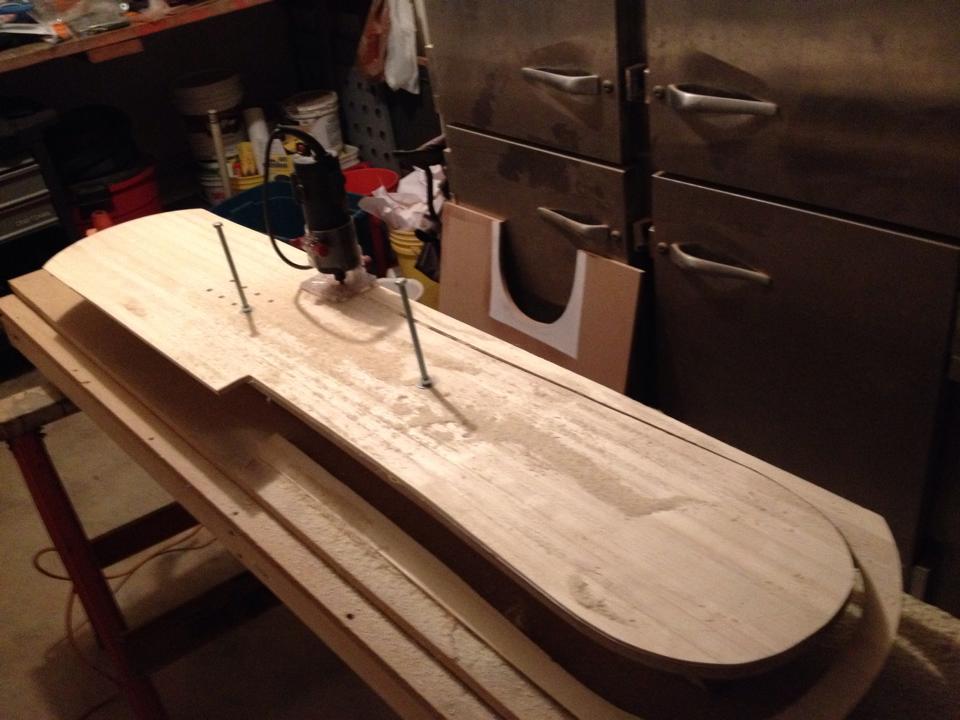

06
Shaping with trim router

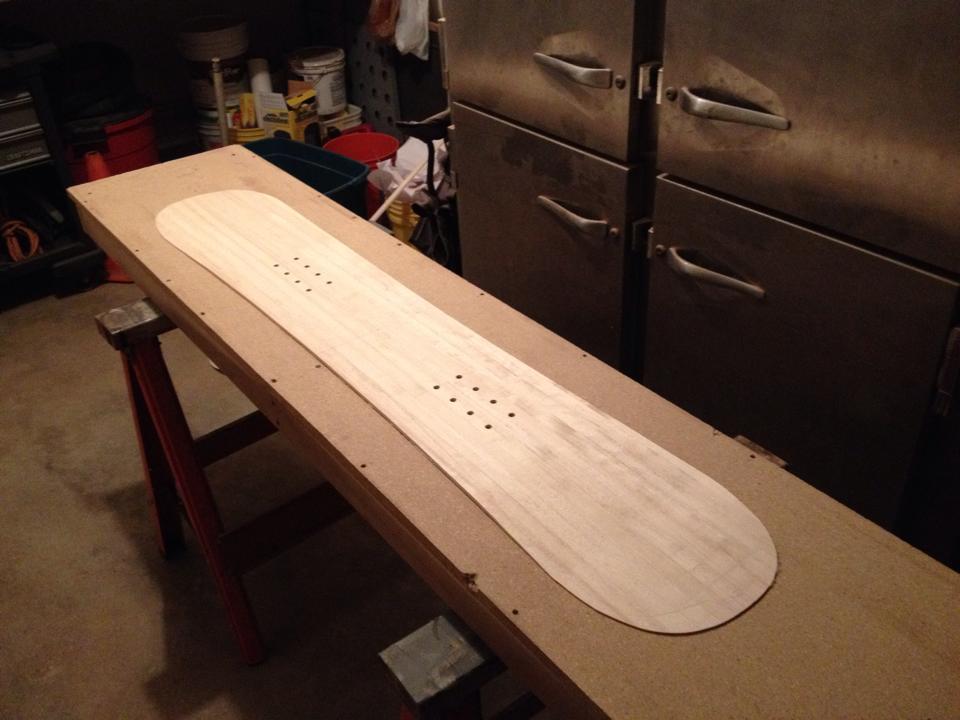

07
Shaped wood core
08
ABS sidewall and tip fill getting epoxied on
09
Base template
10
Shaped Base

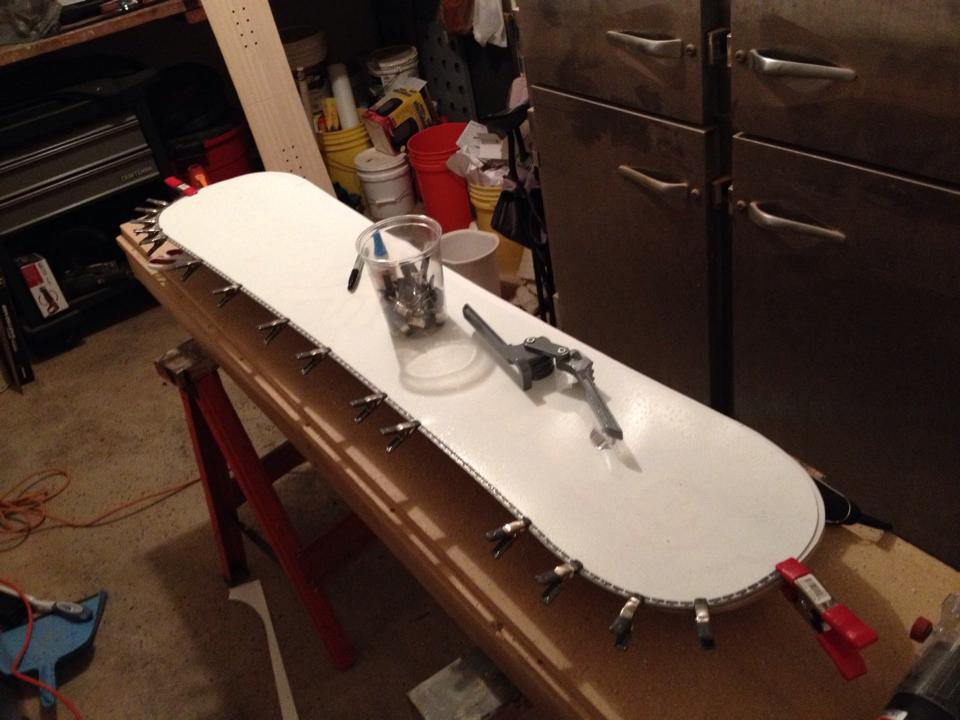

11
Tacking on edges

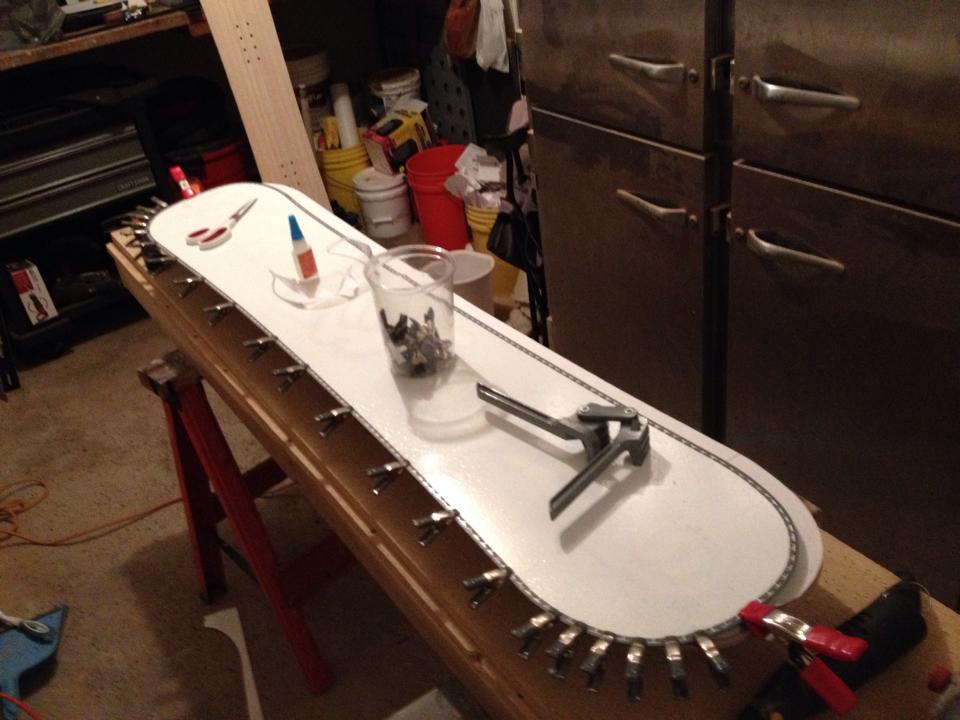

12
Tacking on edges
13
I tried a rocker profile for this board

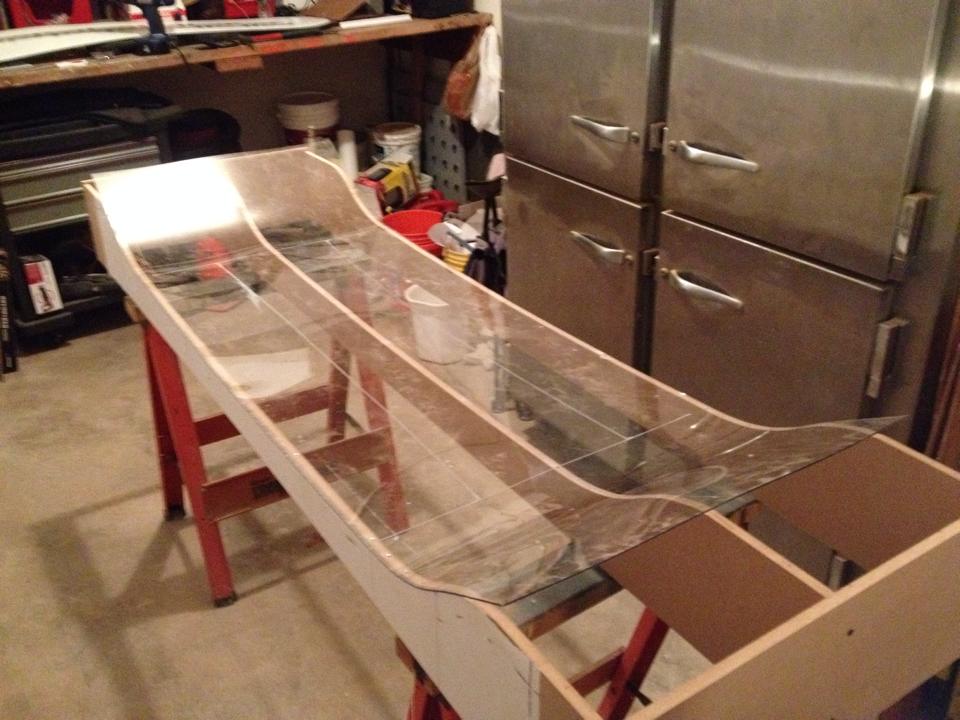

14
Mold with polycarbonate plexiglass. It could’ve used 1 more rib as the plastic was pretty flexible.

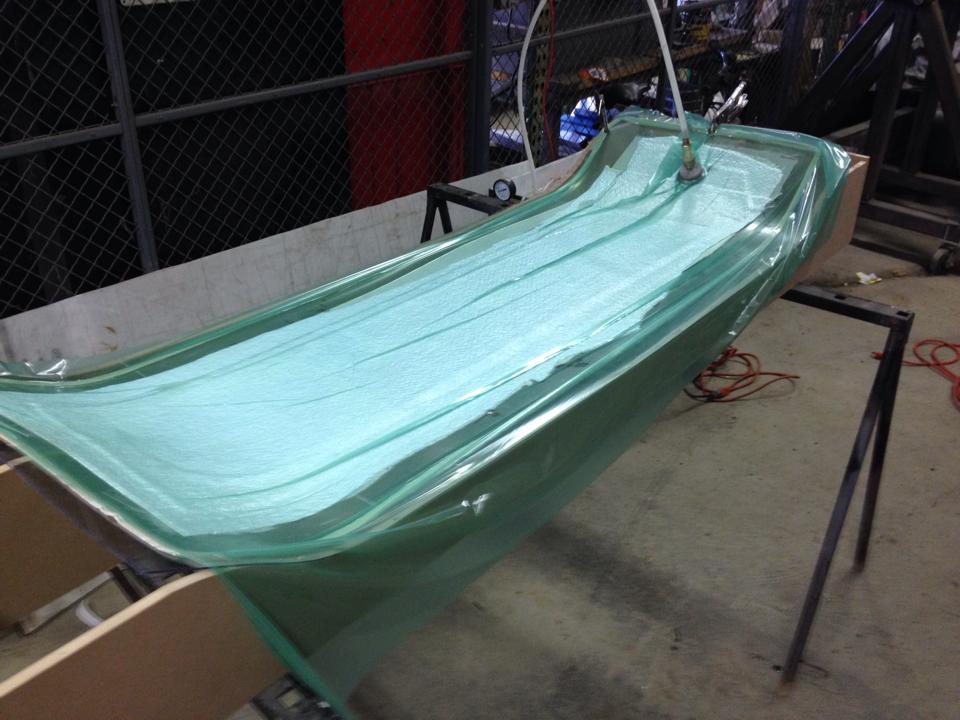

15
Vacuum bagged and pressed
16
Fresh out of the mold and trimmed

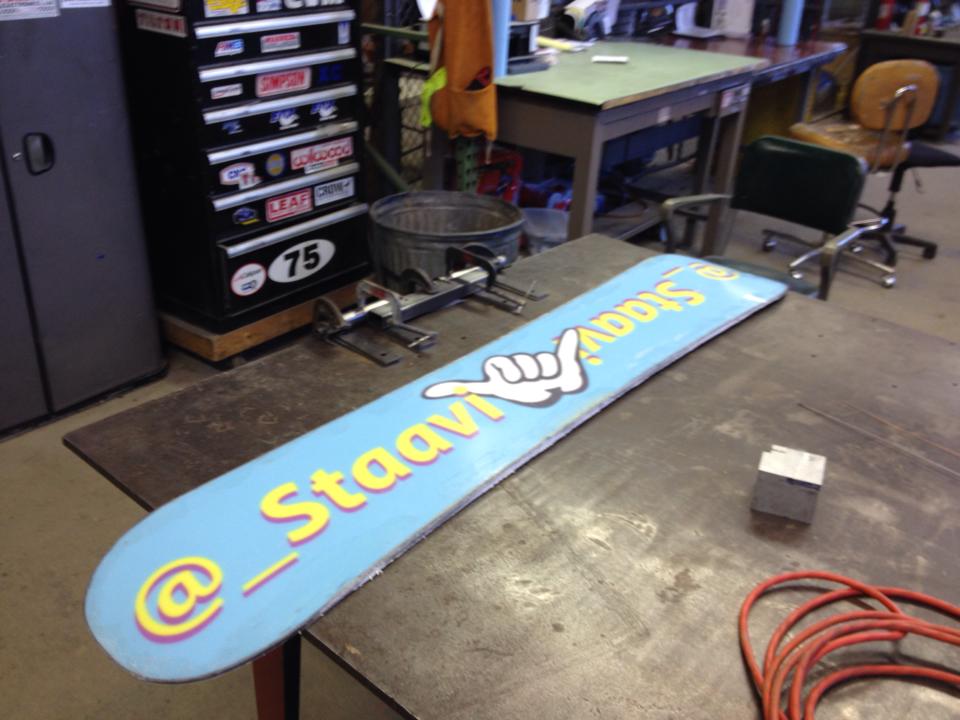

17
Fresh out of the mold and trimmed

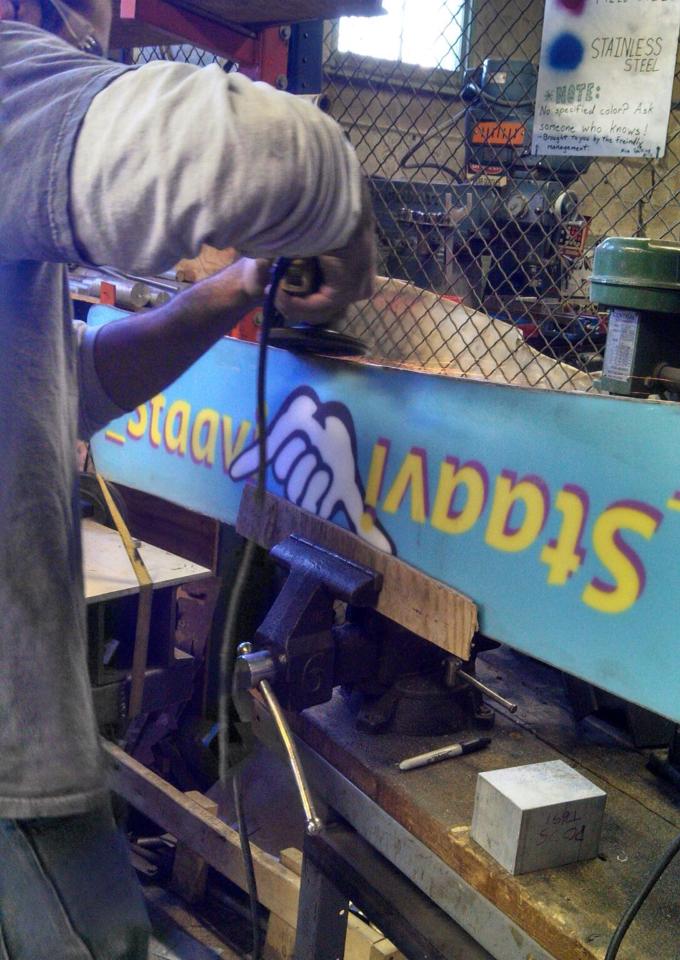

18
Beveling the sidewall by hand with an angle grinder

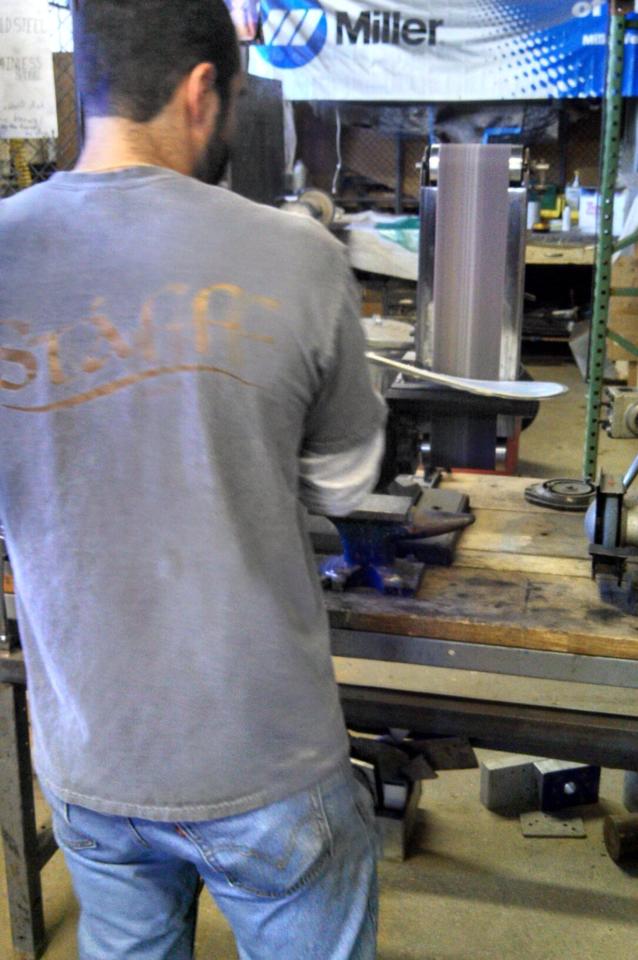

19
Finishing the tip and tail

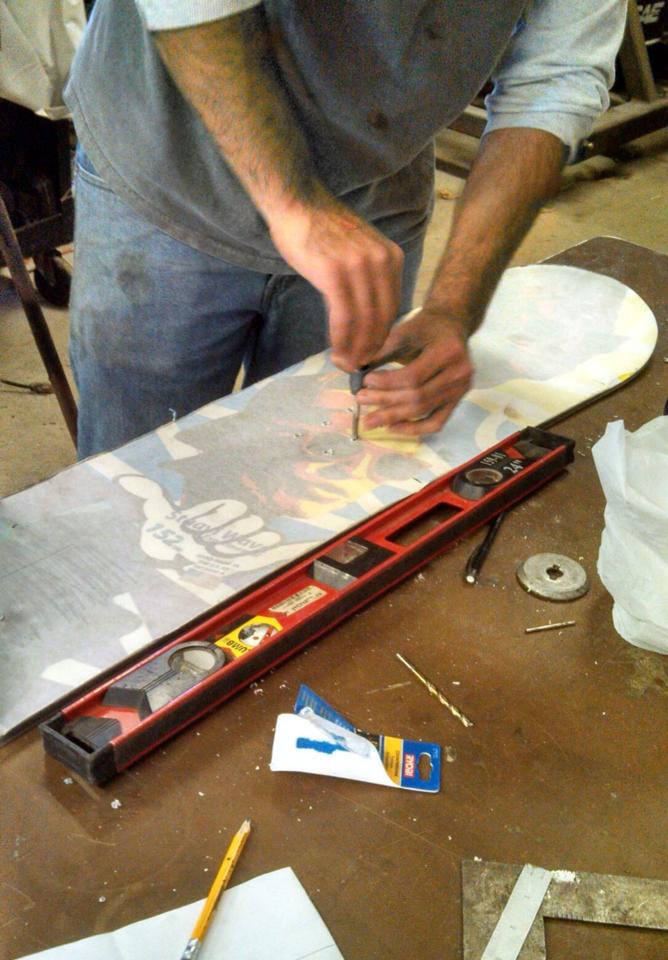

20
Tapping the inserts
21
Graphic looking slick!

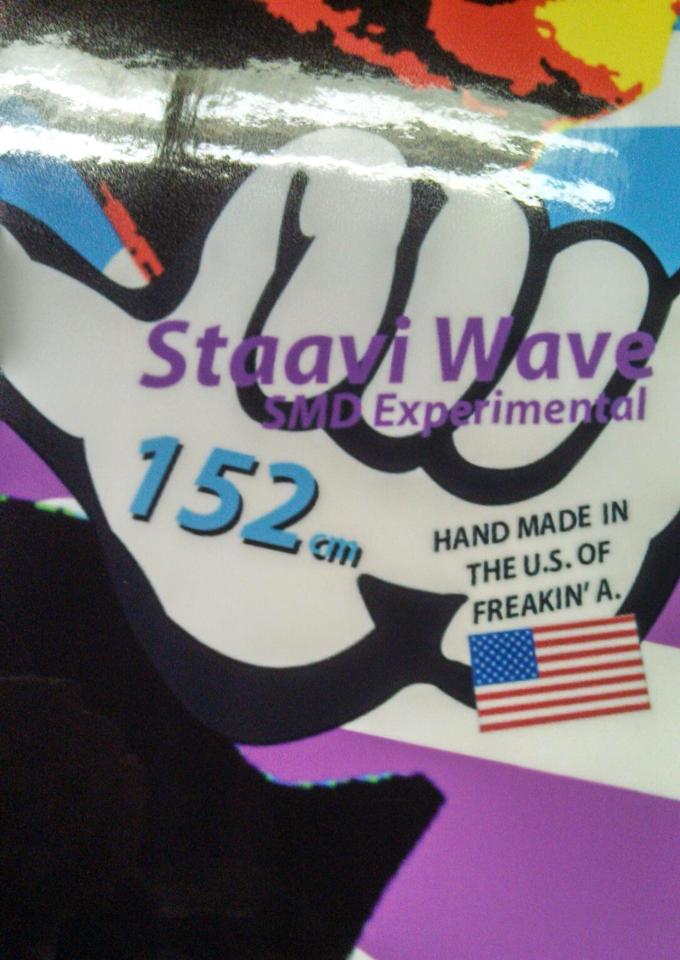

22
Logo closeup
23
The big reveal!
24
Approved
25
Freshly waxed base

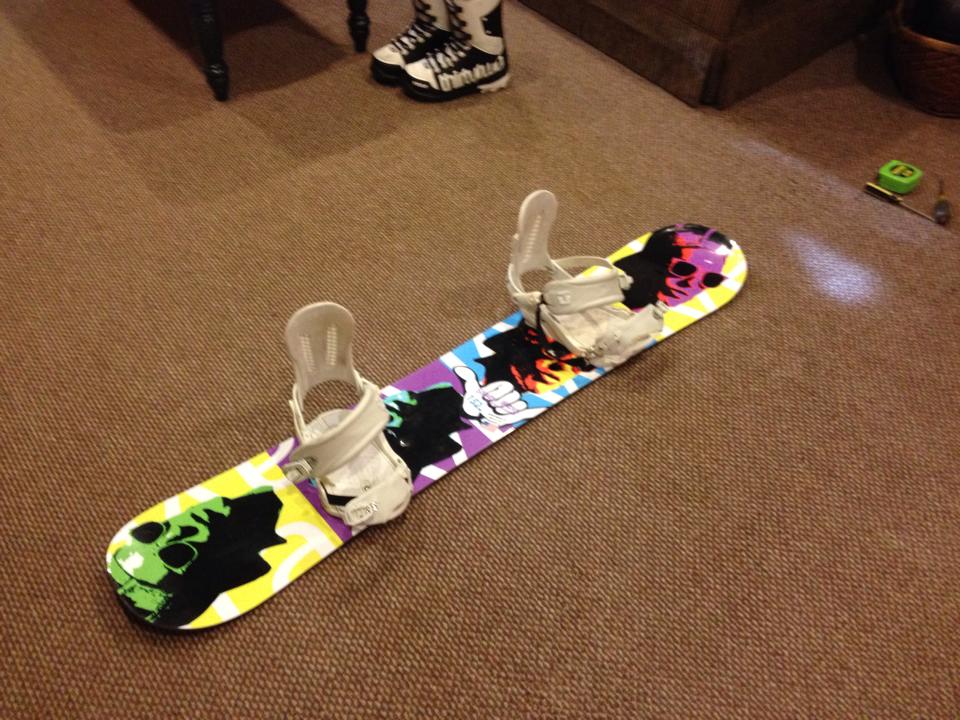

26
Board is set up!
27
R&D
28
R&D
29
R&D
