O.G. Snowboard

Here’s some photo documentation of the first board I made back in 2013.  I used techniques I learned from boardcrafter.com and skibuilders.com.  This thing came out like a brick.  Stiff as a rod and heavy, but boy does it like to bomb a hill.

Specs

  • Size 159, custom width for my big feet
  • True twin shape
  • Hand-made poplar wood core
  • Ultra-stiff tri-axial fiber pattern with carbon stringers running the length of the board
  • True-to-the-90s capped edge construction
planing4
Start with a block of wood

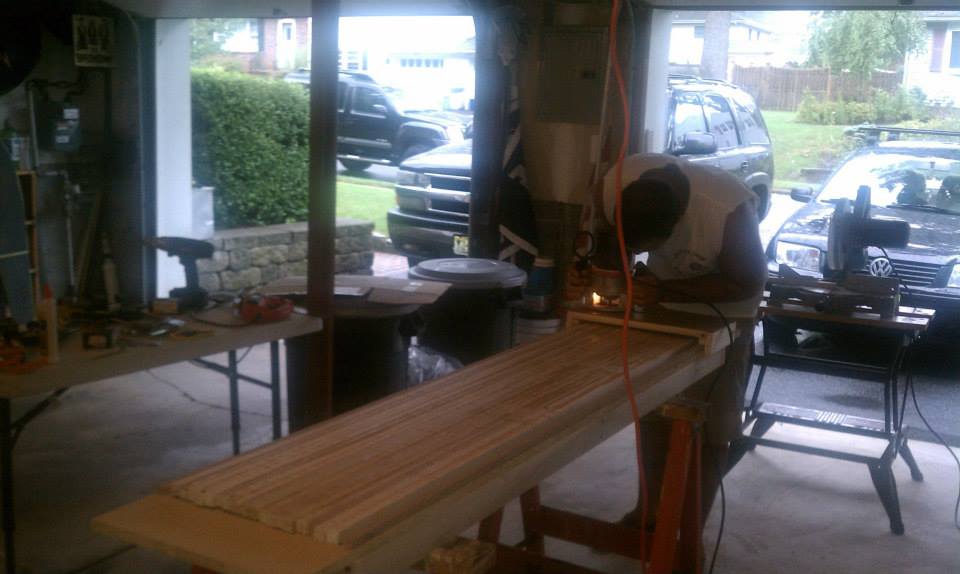

planing2
Tedious planing

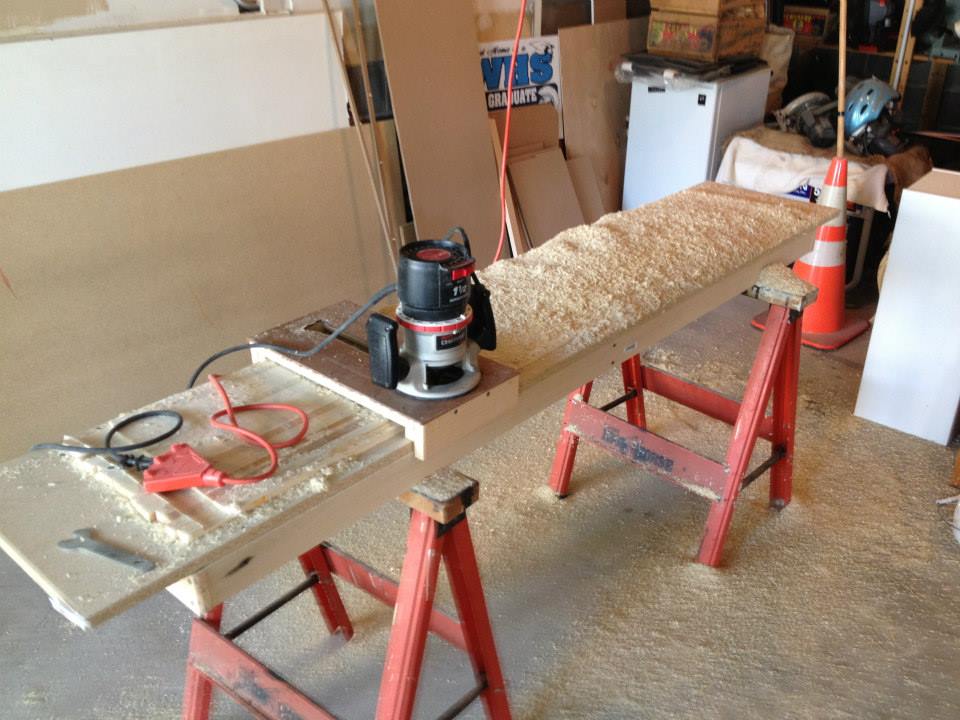

planing5
Tedious planing

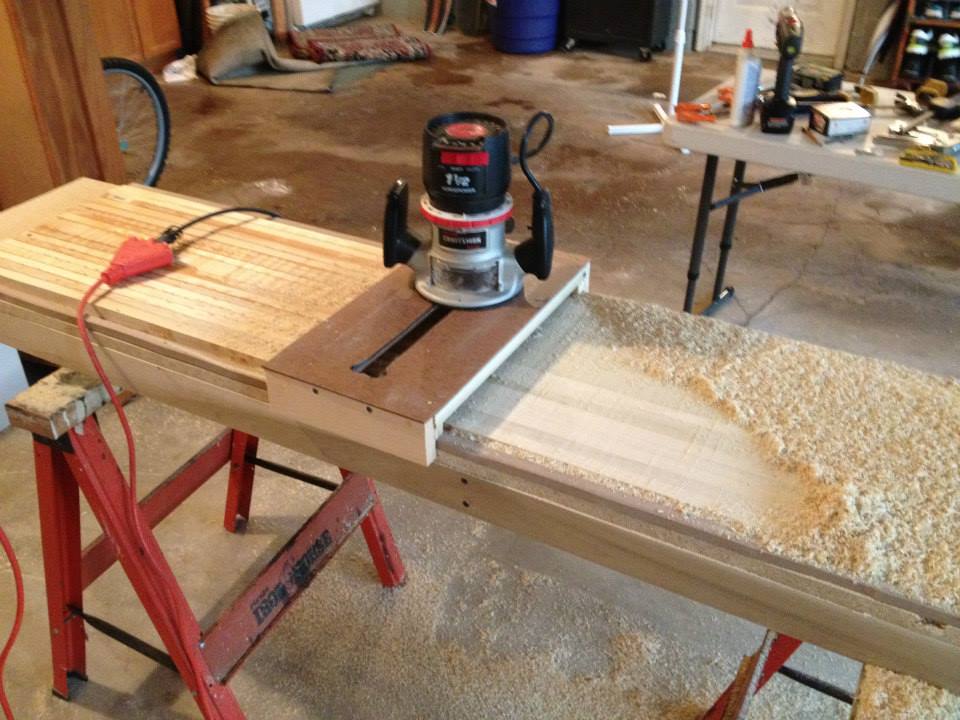

planing6
Tedious planing

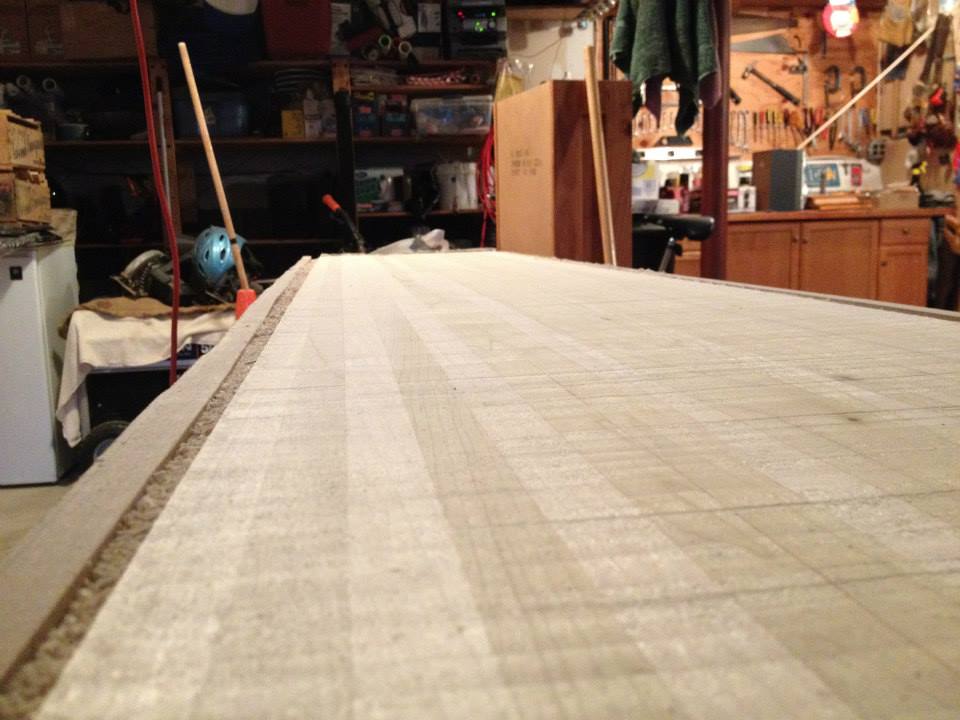

planing1
Result of tedious planing

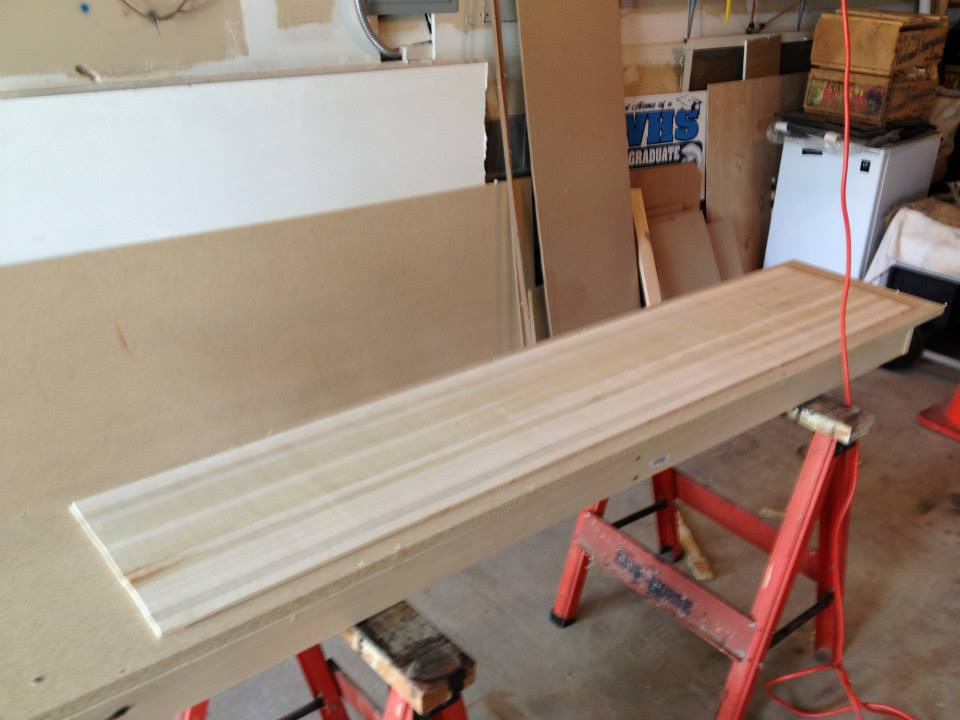

planing3
Blank wood core

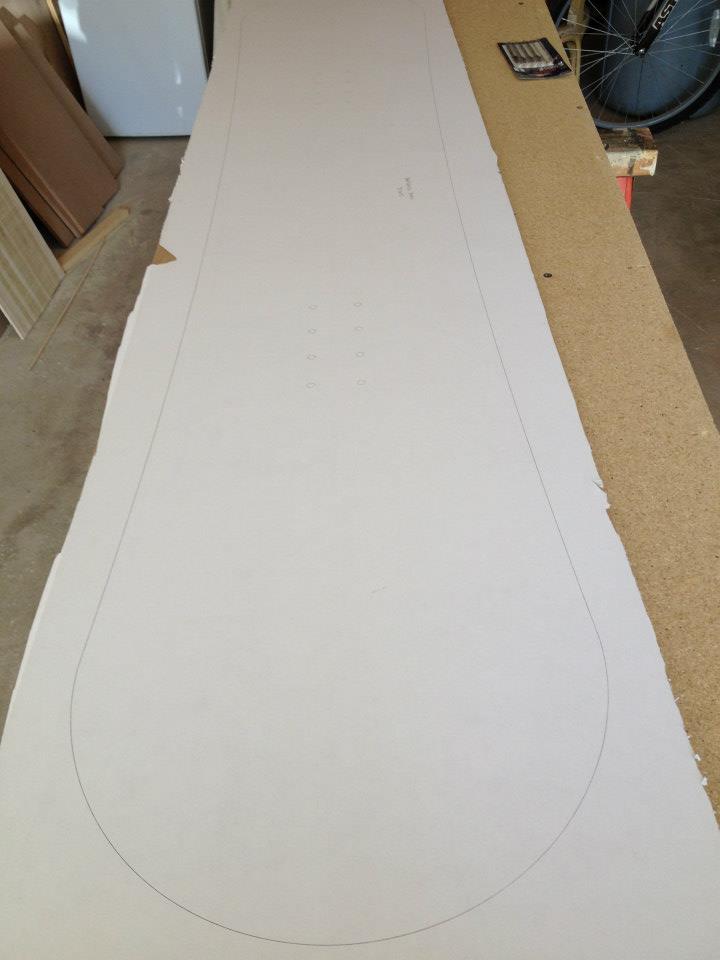

template2
Core/Base template
template3
Cutting the templates
template1
Base template

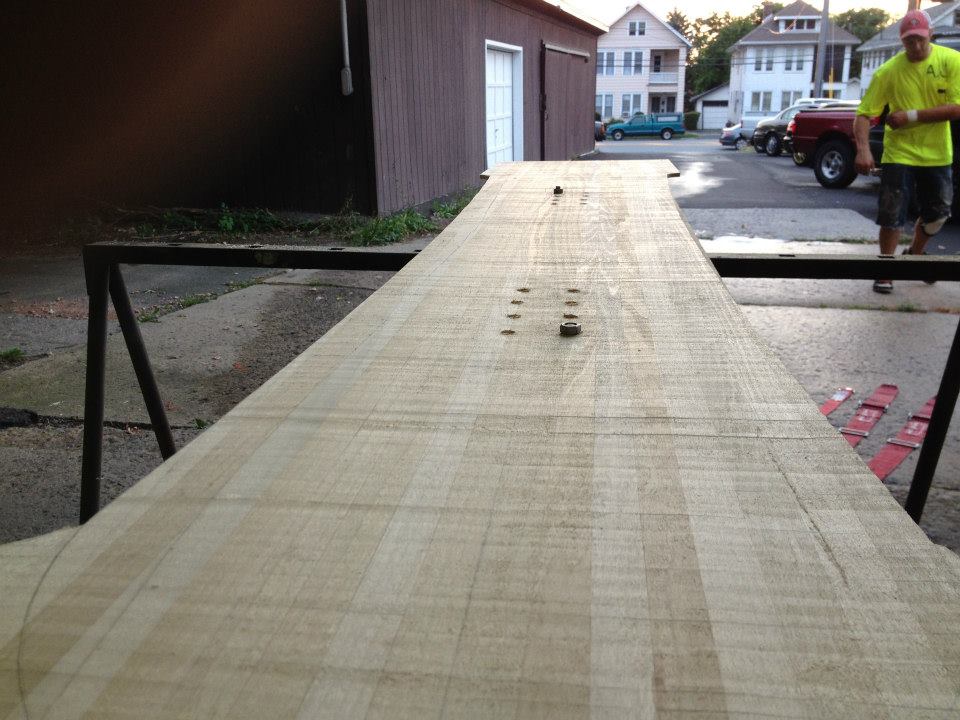

core1
Shaped and beveled edges
core4
Fully shaped wood core
core5
Binding inserts

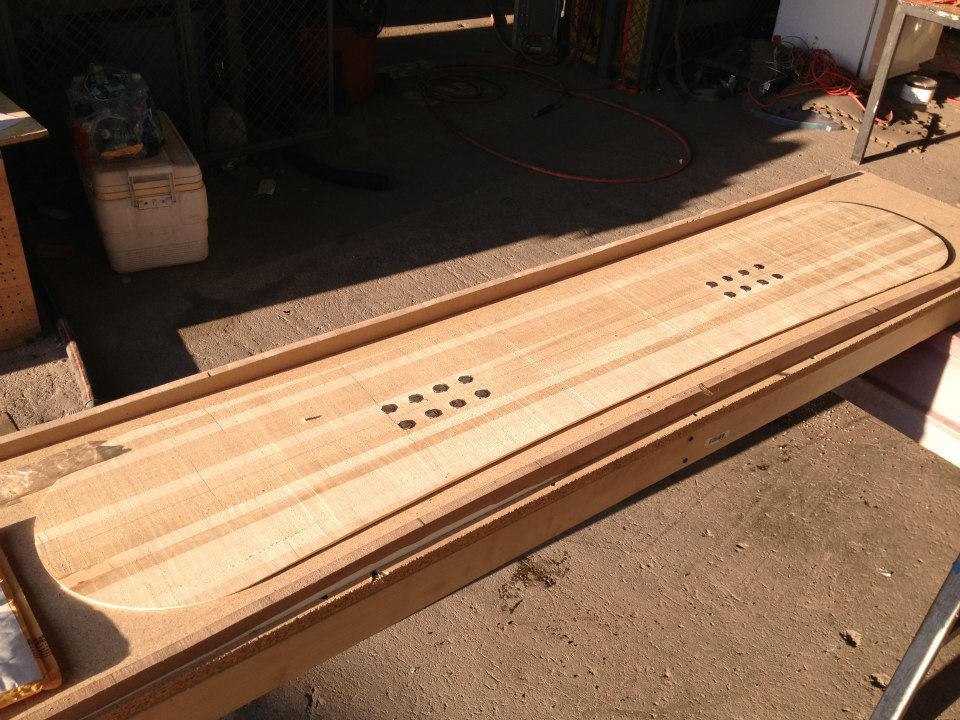

core3
Bottom of wood core with inserts

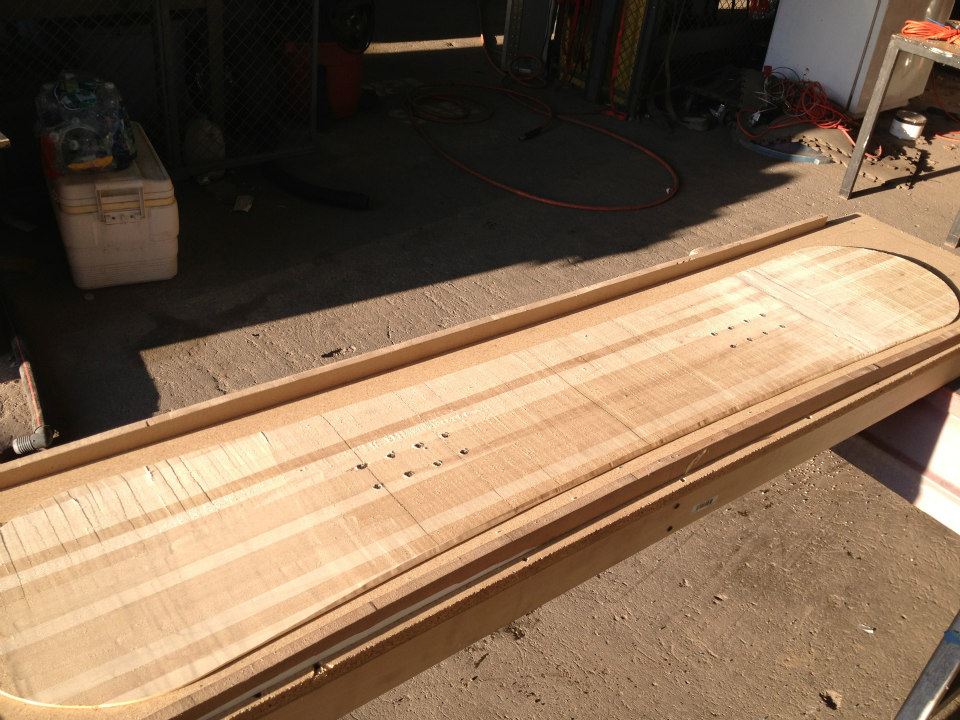

core2
Top of wood core with inserts

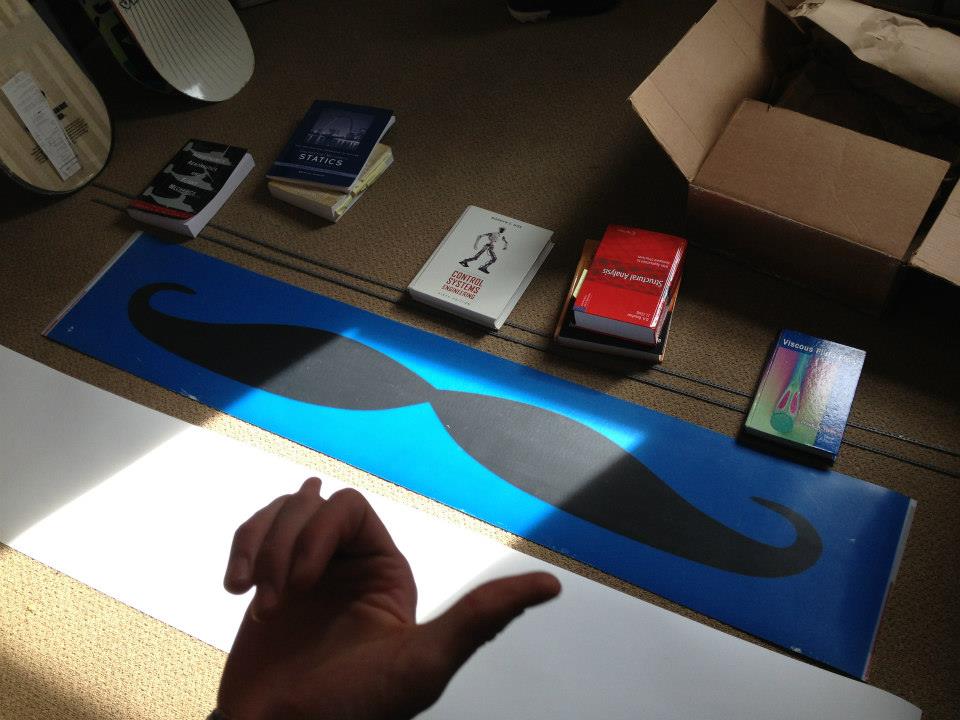

materials
Composites materials have arrived!
base1
Shaped base

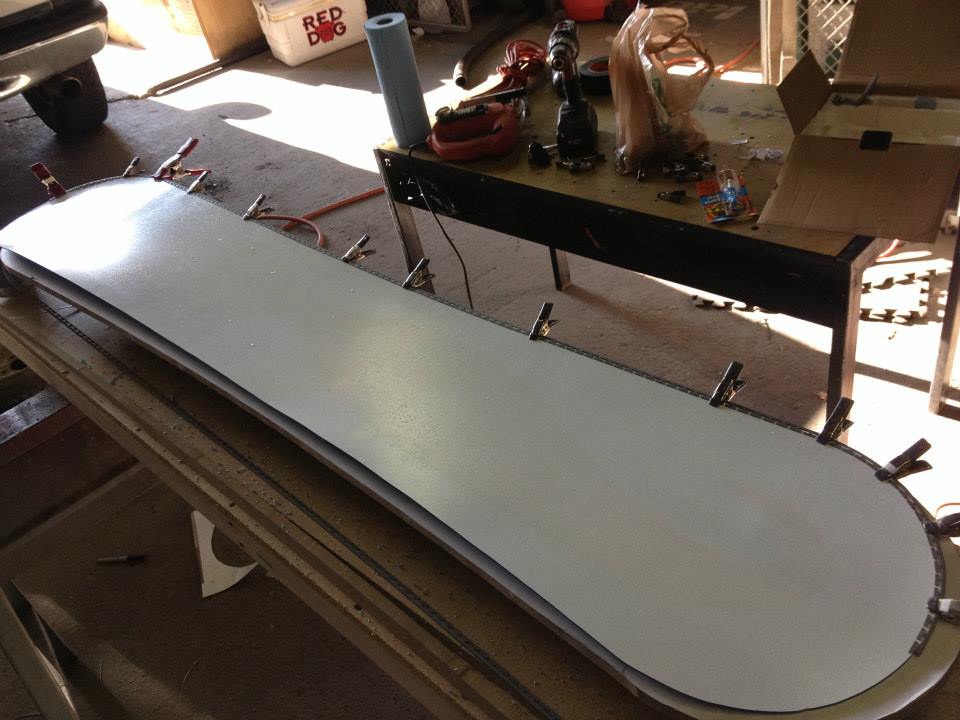

edges3
Banding and tacking the edges

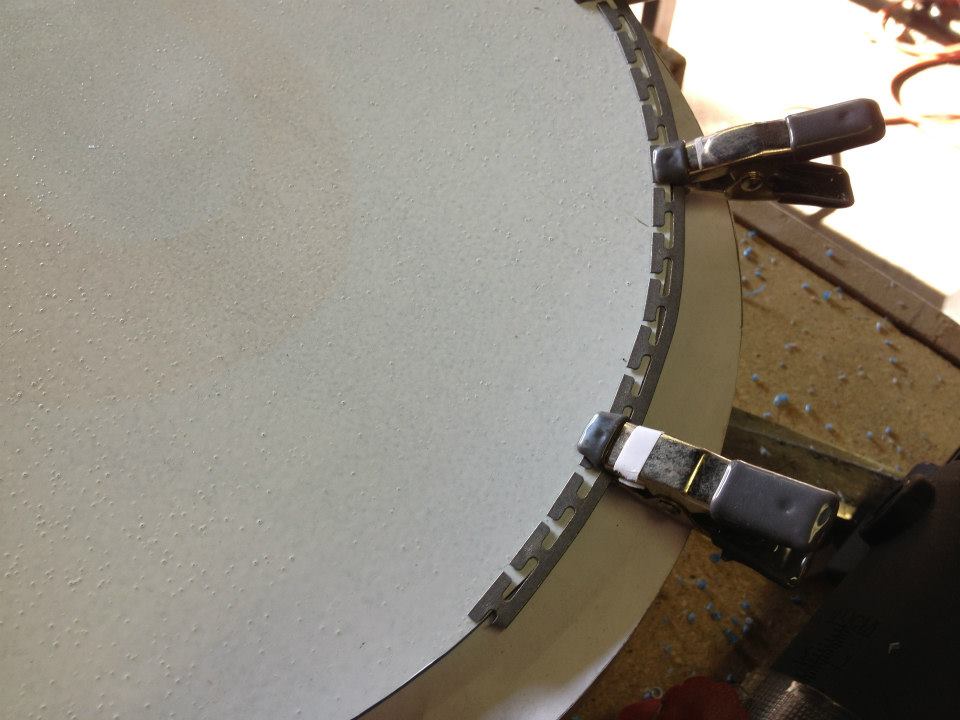

edges2
Bending and tacking the edges

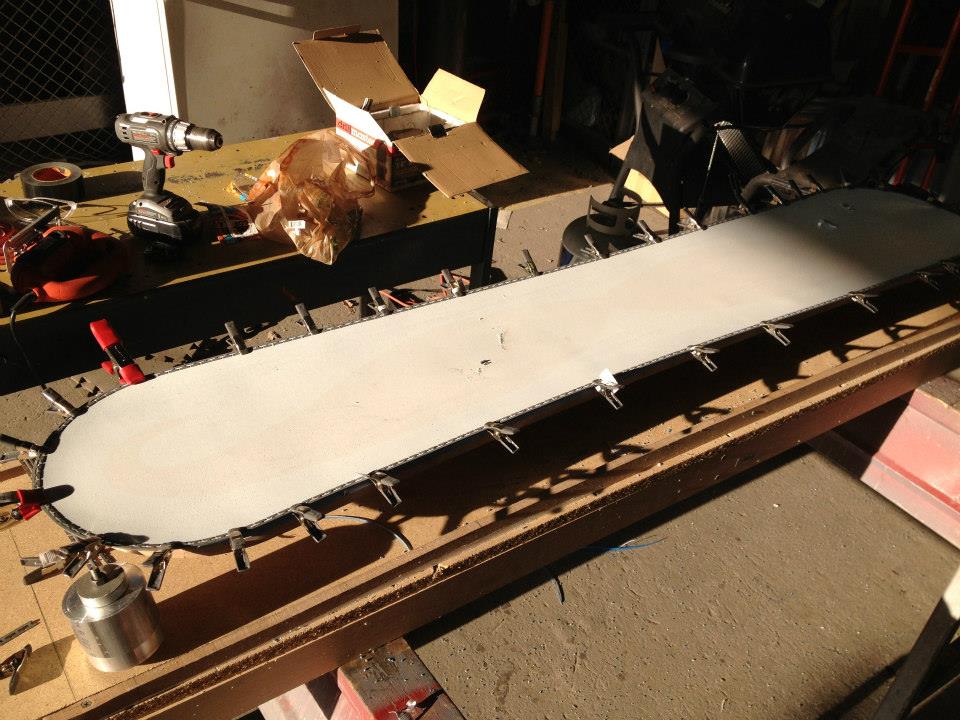

edges1
Bending and tacking the edges
edges
Edges in place

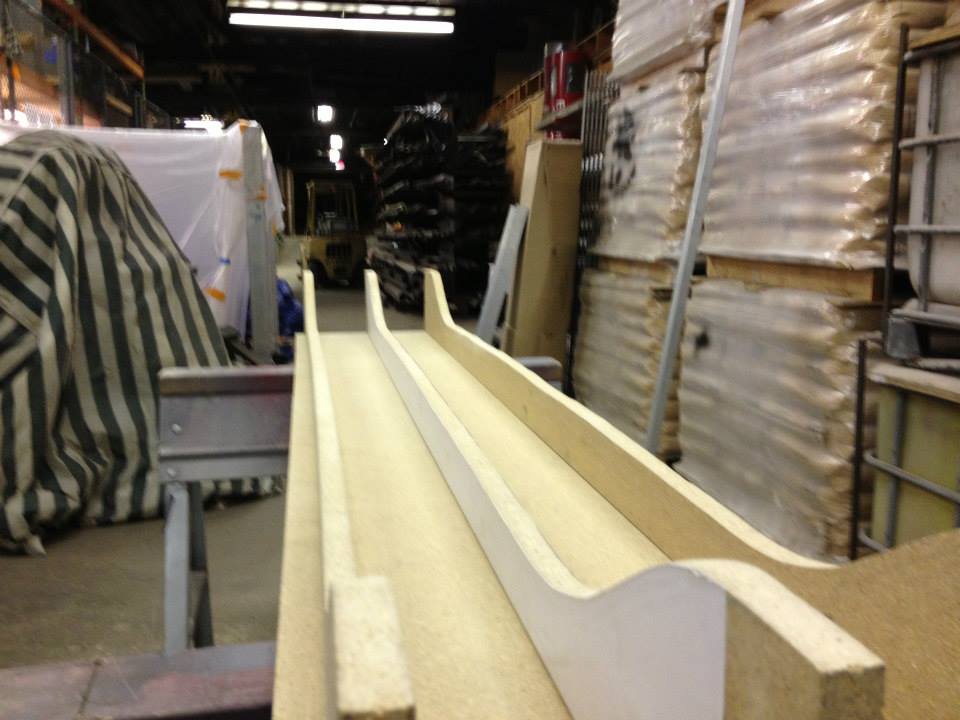

mold2
Mold ribs

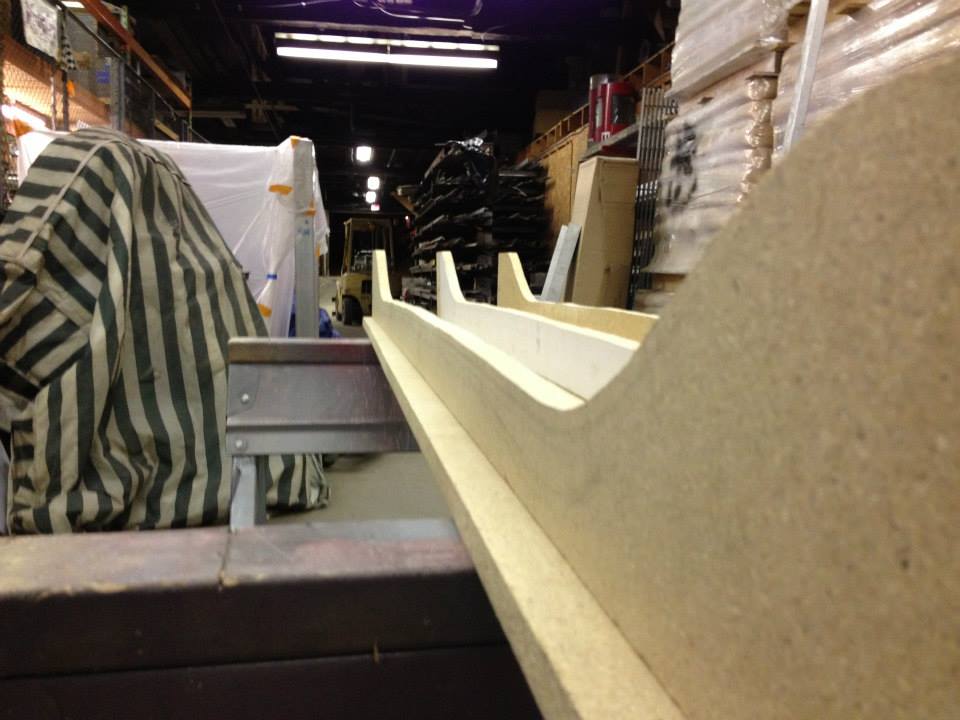

mold4
Mold ribs
mold1
Mold ribs

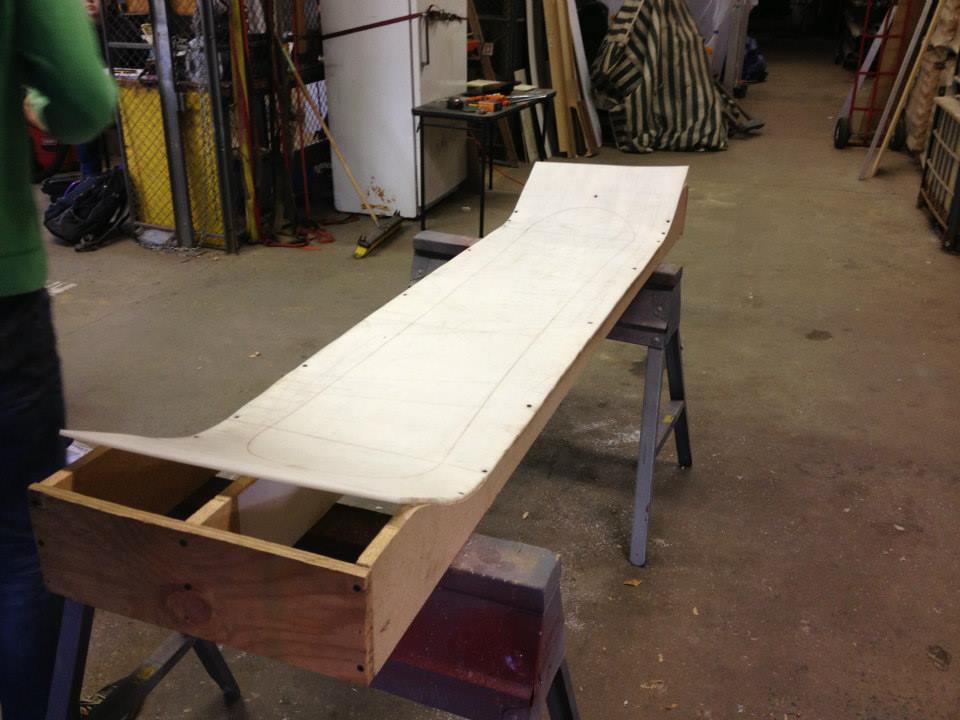

mold3
Constructed mold
layup9
Layup layer 1, base

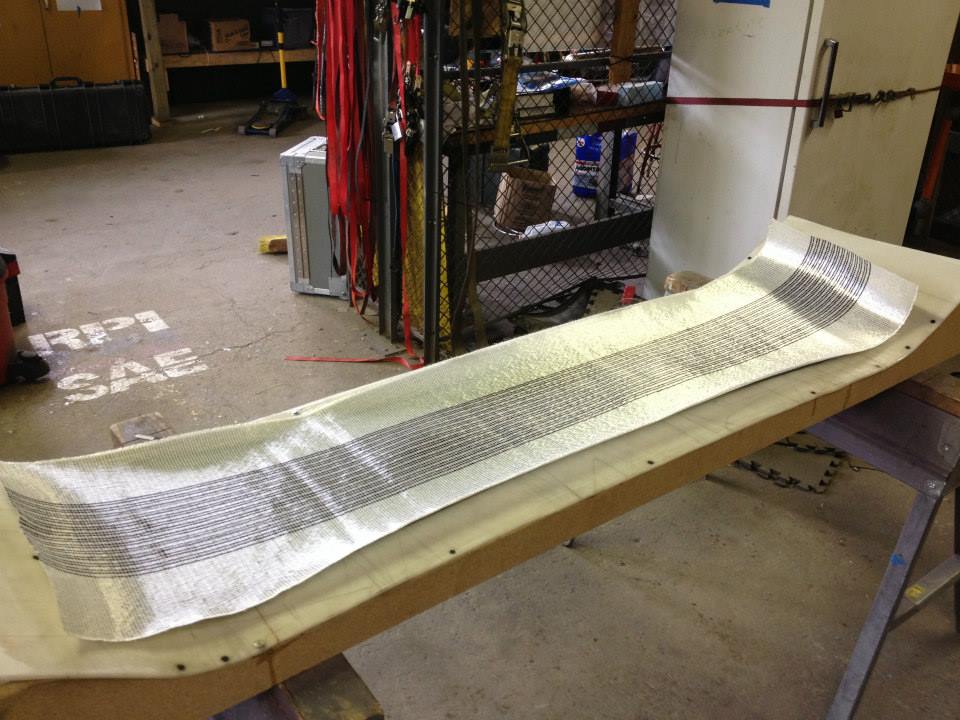

layup8
Layer 2, triax fiberglass with carbon stringers

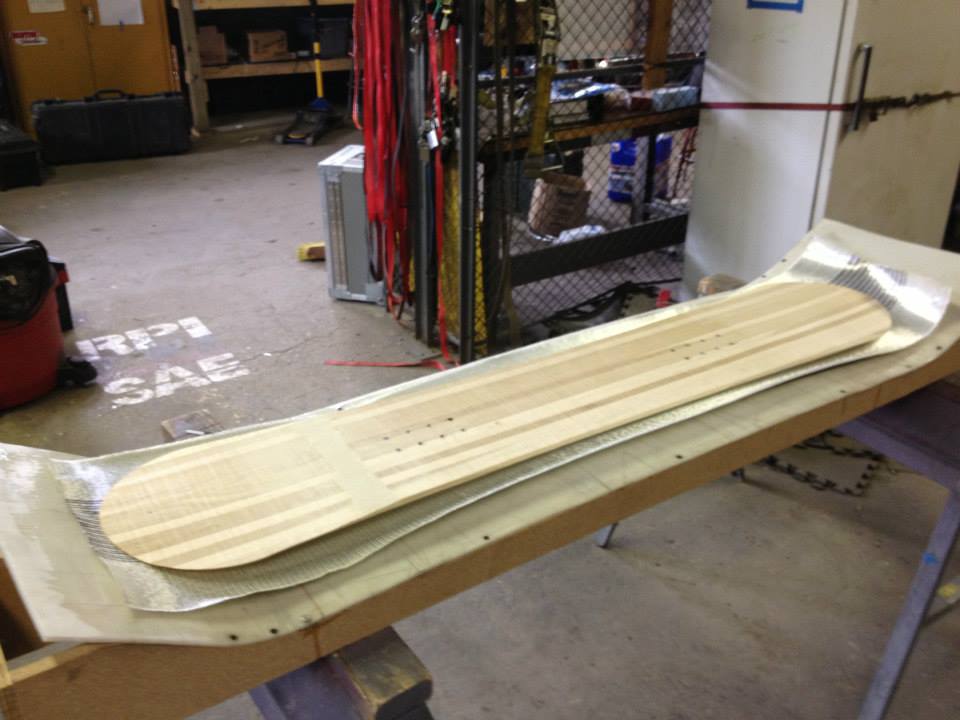

layup1
Layer 3, wood core

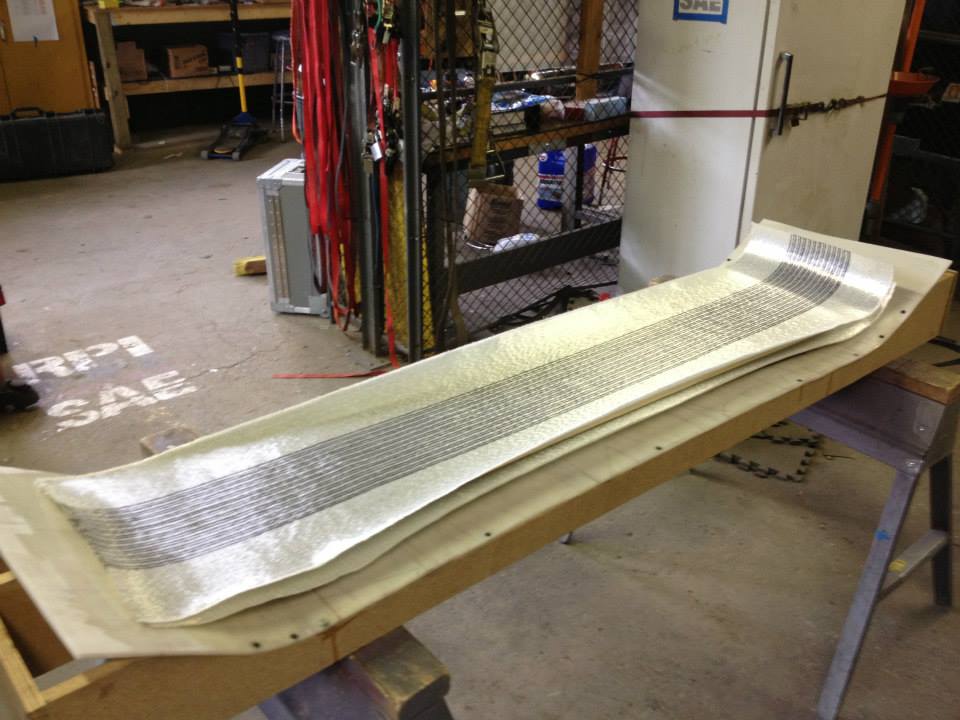

layup6
Layer 4, another layer of triax with carbon stringers

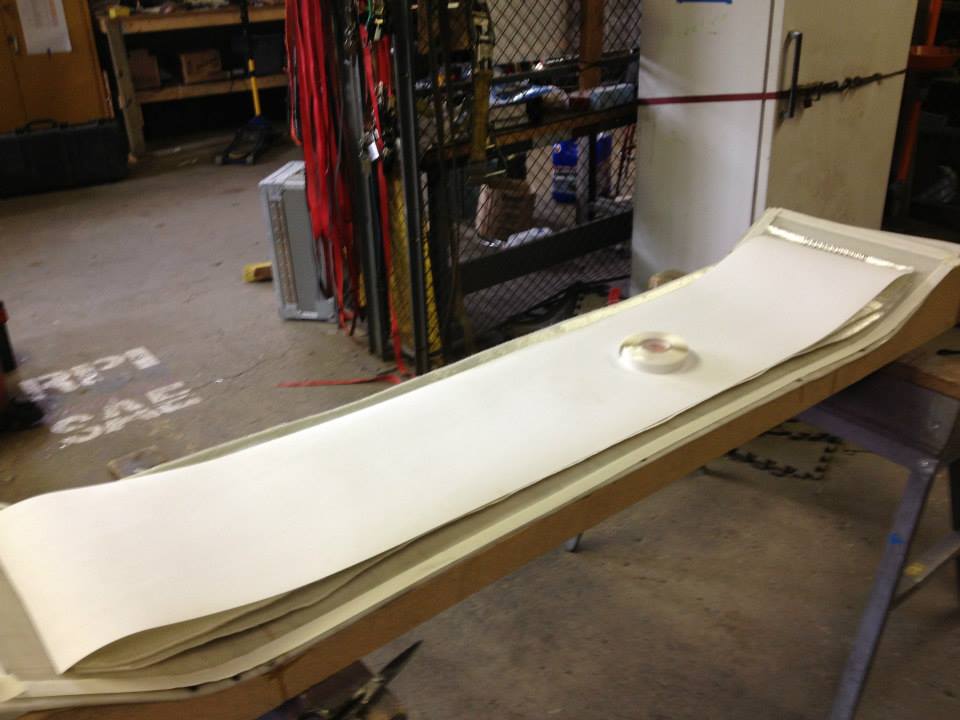

layup7
Layer 5, plastic topsheet

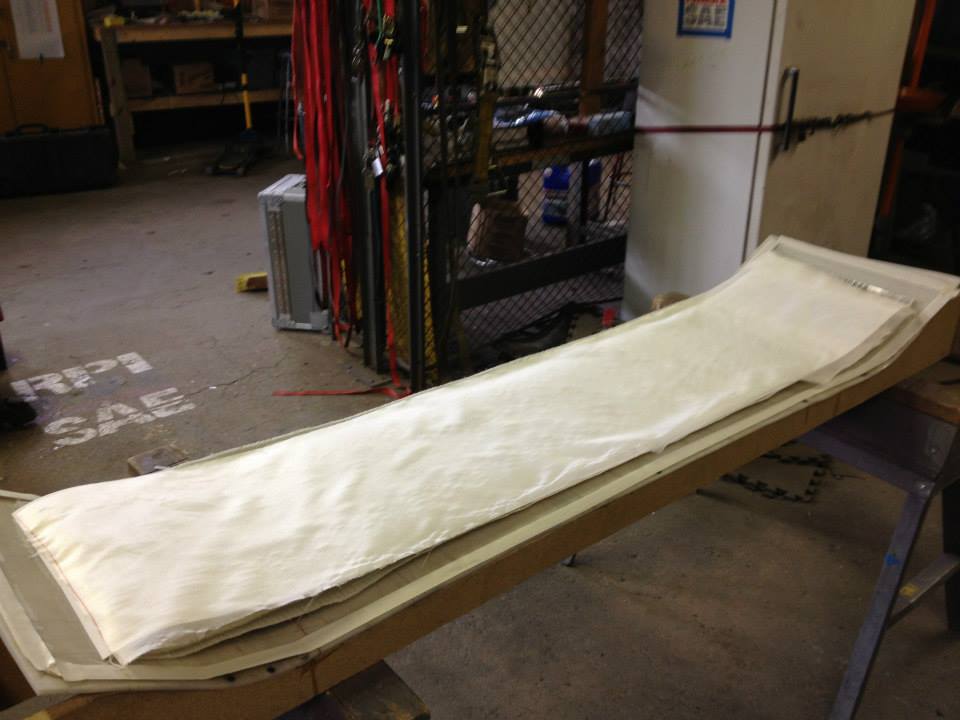

layup3
Peel ply

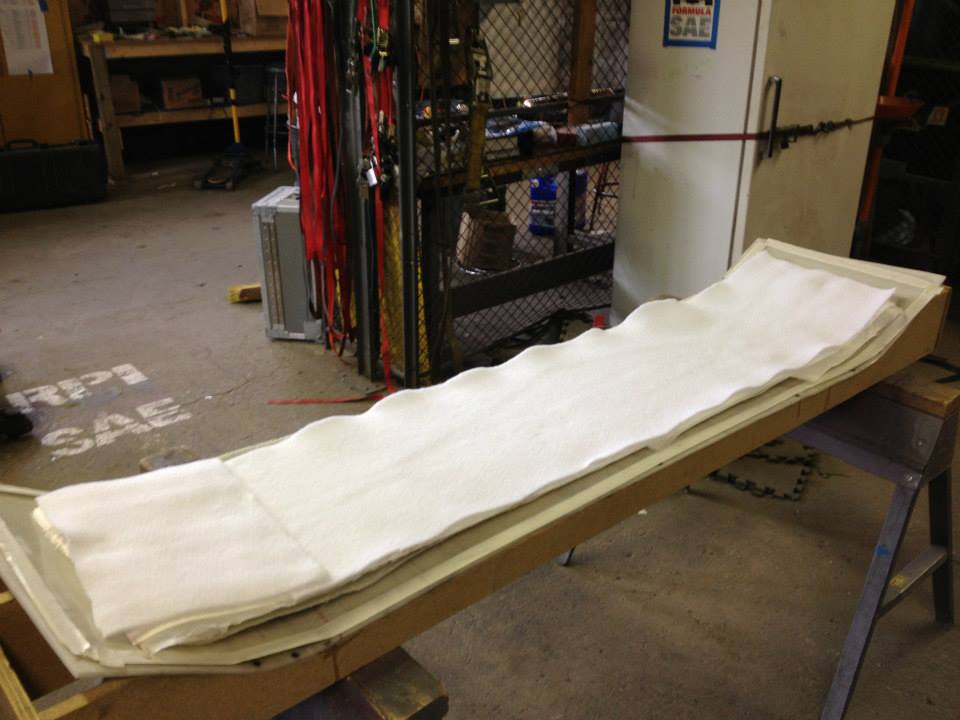

layup5
Vacuum breather

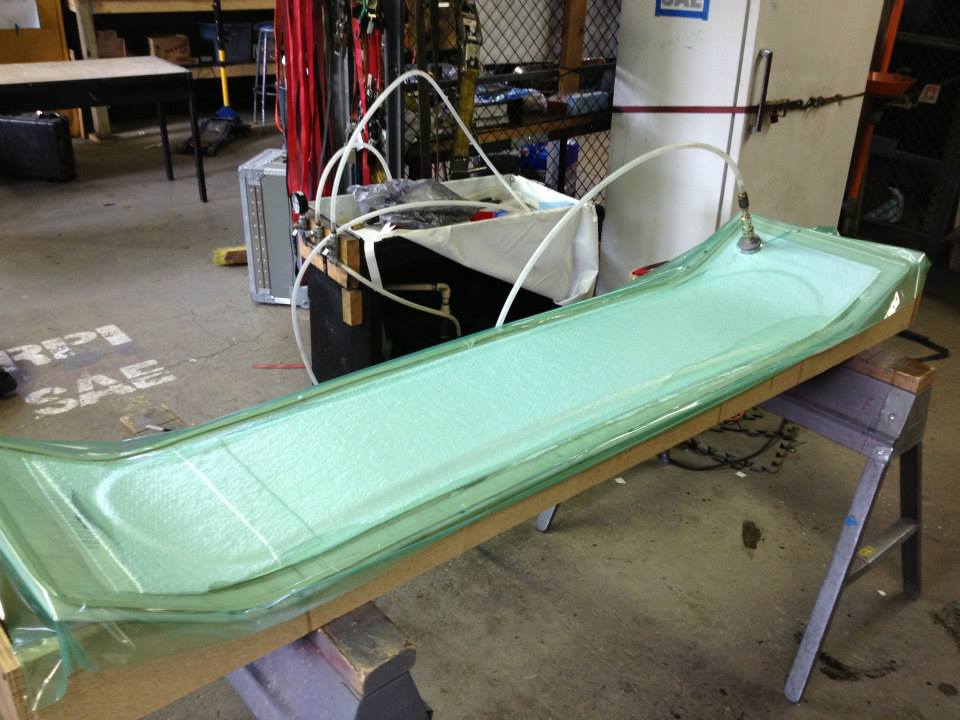

layup2
Vacuum bagged

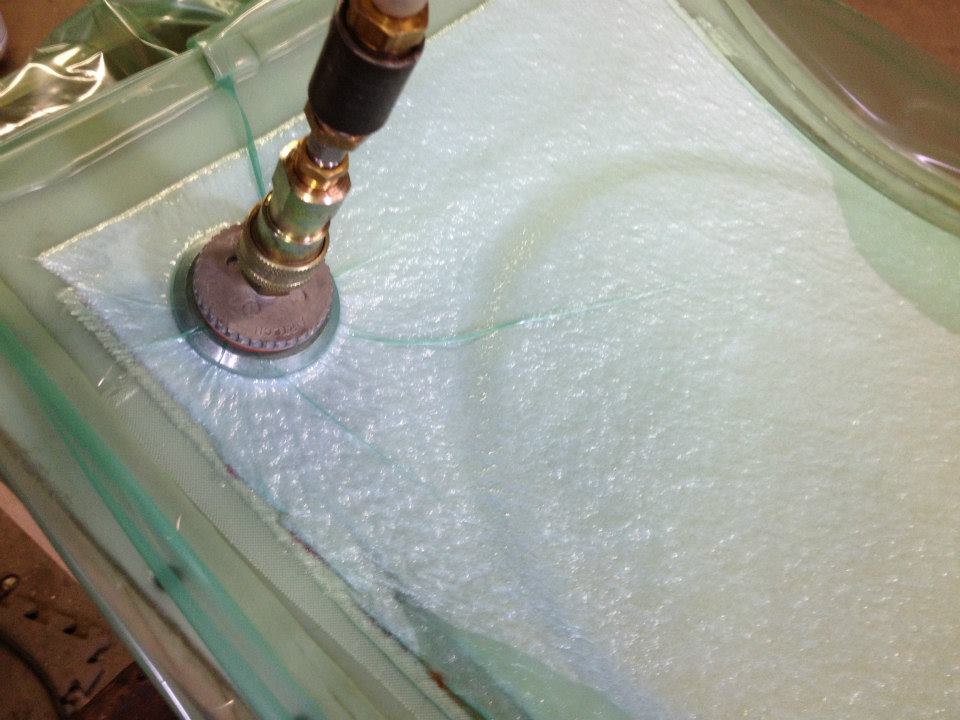

layup4
Vacuum apparatus

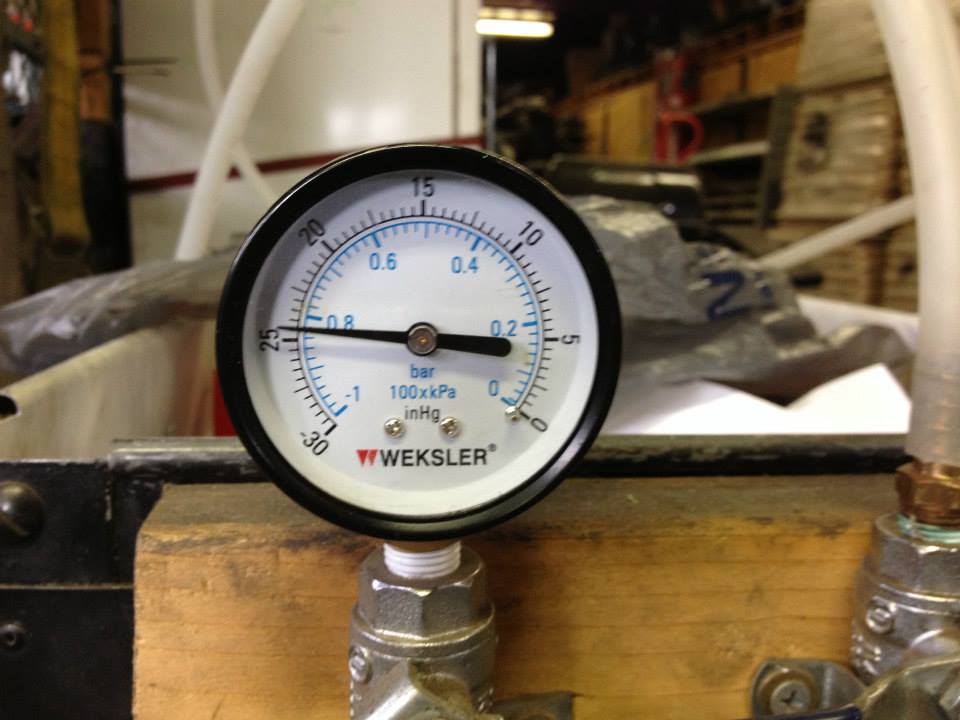

layup10
Almost a full vacuum

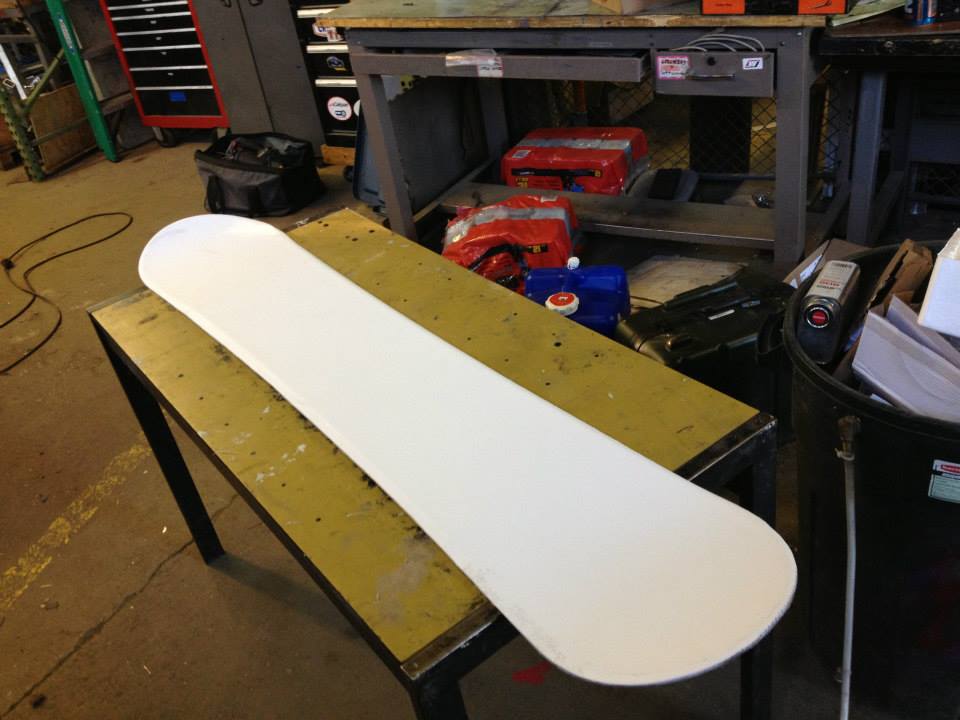

finished10
Hot off the press!

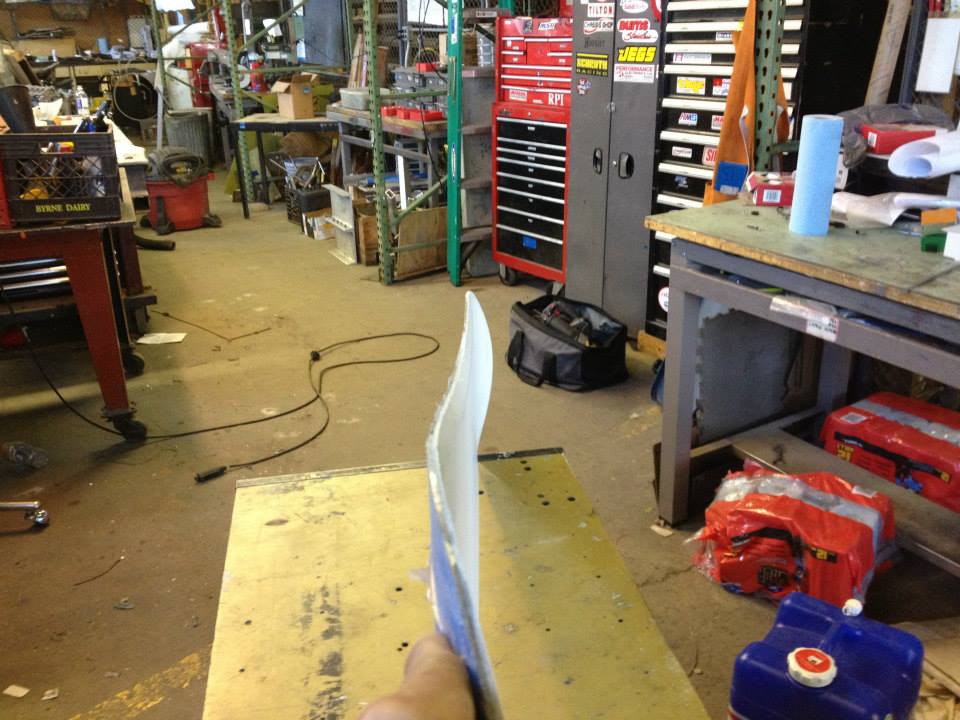

finished5
Hot off the press!

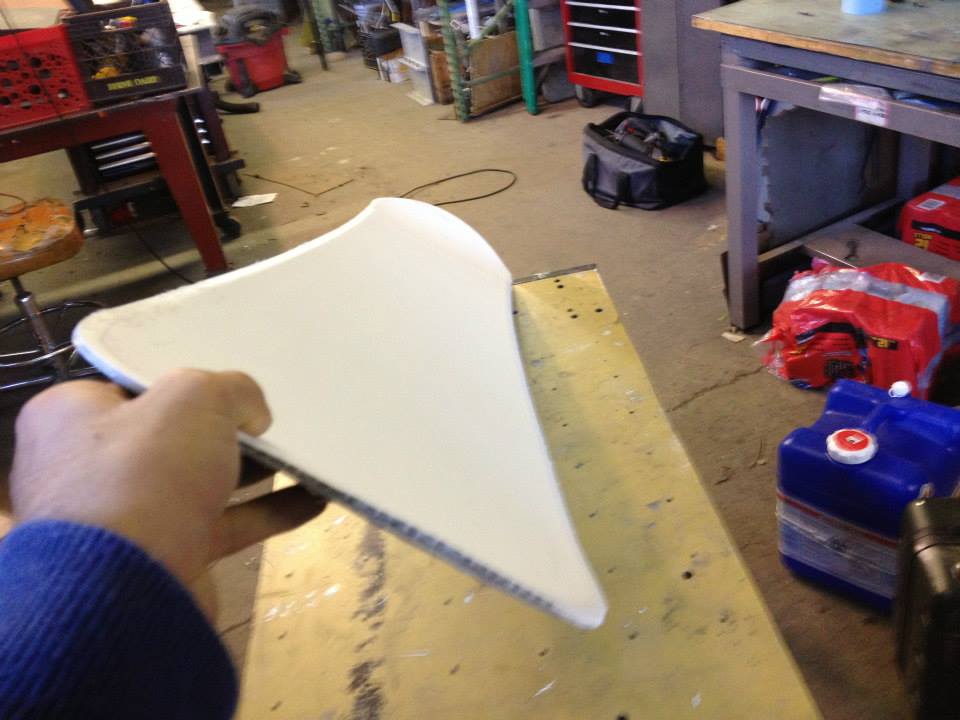

finished4
Hot off the press!
finished11
Hot off the press!
finished9
Tapping the inserts

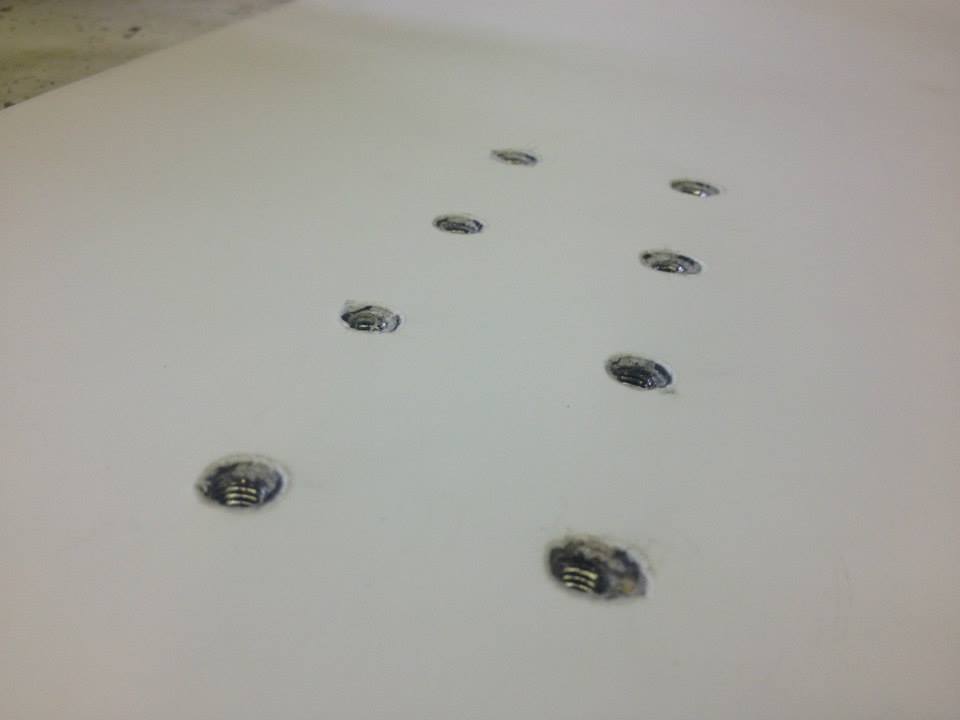

finished6
Tapping the inserts
finished3
Ready for a base grind and wax
finished2
Ready for a base grind and wax

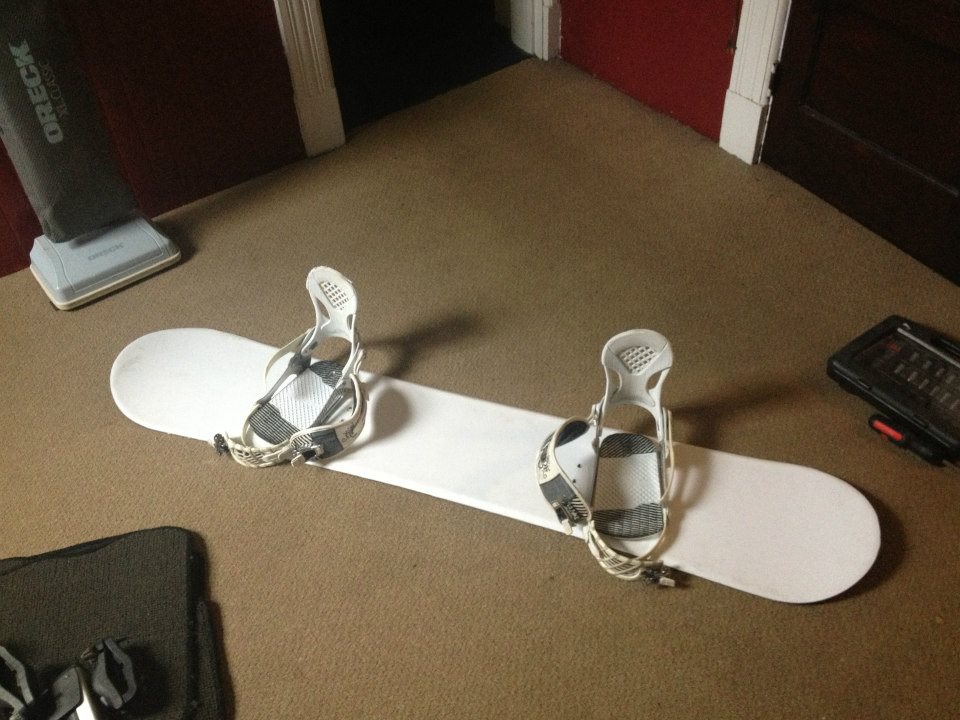

finished8
Bindings mounted

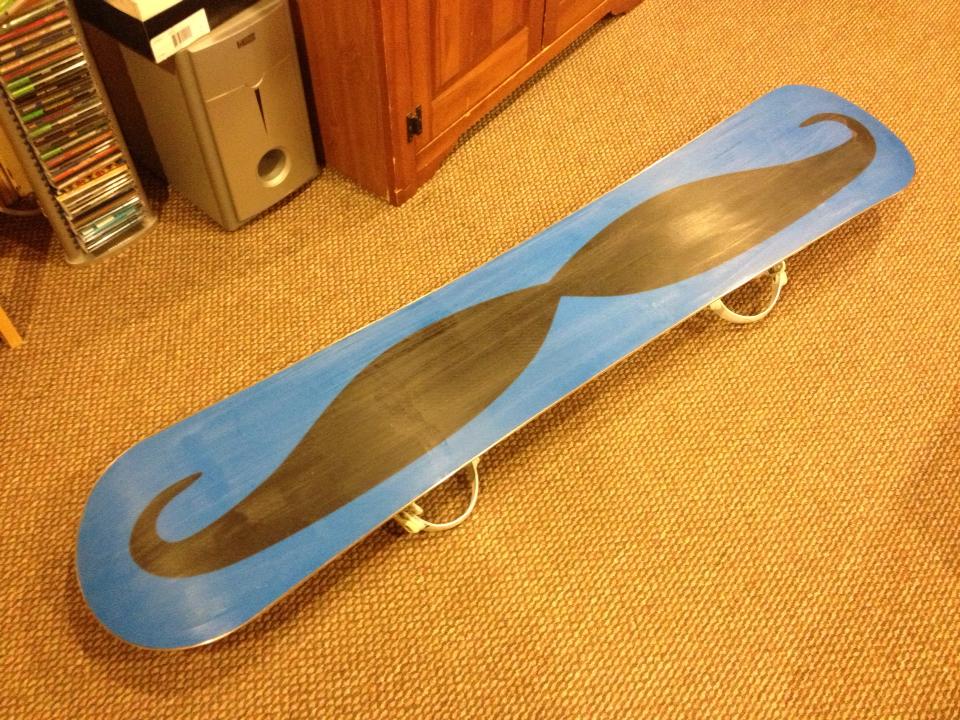

finished7
Waxed and ready to rip!
