DIY Snowboard 3.0: Learning the ways of the CNC

Building on my experimentation with sidewall, I wanted to try a poured epoxy sidewall method as seen on skibuilders.com.  A buddy working as a CNC operator at a startup let me come play around with heavy machinery for this one!

The idea is to cut a trench out of your wood core stock, in the shape of your board.  Pour epoxy into that trench.  When cured, plane down the whole thing and profile the thickness. This method, in my humble opinion, yields a great result and is less of a pain than bonding plastic sidewalls onto your already profiled core.  Granted, a lot of things become easier when you get a robot to do the work for you!

12920416_10209238575946112_1430950867218526803_n_10209238575946112
Gluing up the stock.
12924567_10209238575466100_7568044050744055209_n_10209238575466100

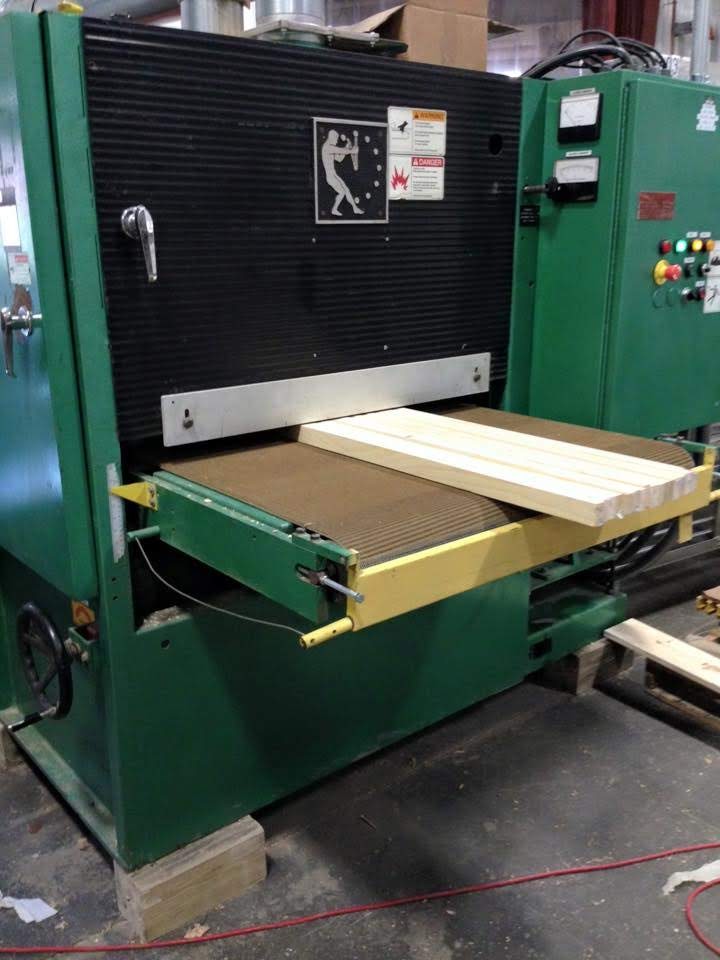

Rough planing on a large belt sander.
12963535_10209238574706081_4725297576349371409_n_10209238574706081
Large scale CNC router, this thing was really cool.
12523963_10209238574226069_4530265188988842891_n_10209238574226069
Precision stock planing on the router.
12963795_10209238574066065_2084375746644399229_n_10209238574066065

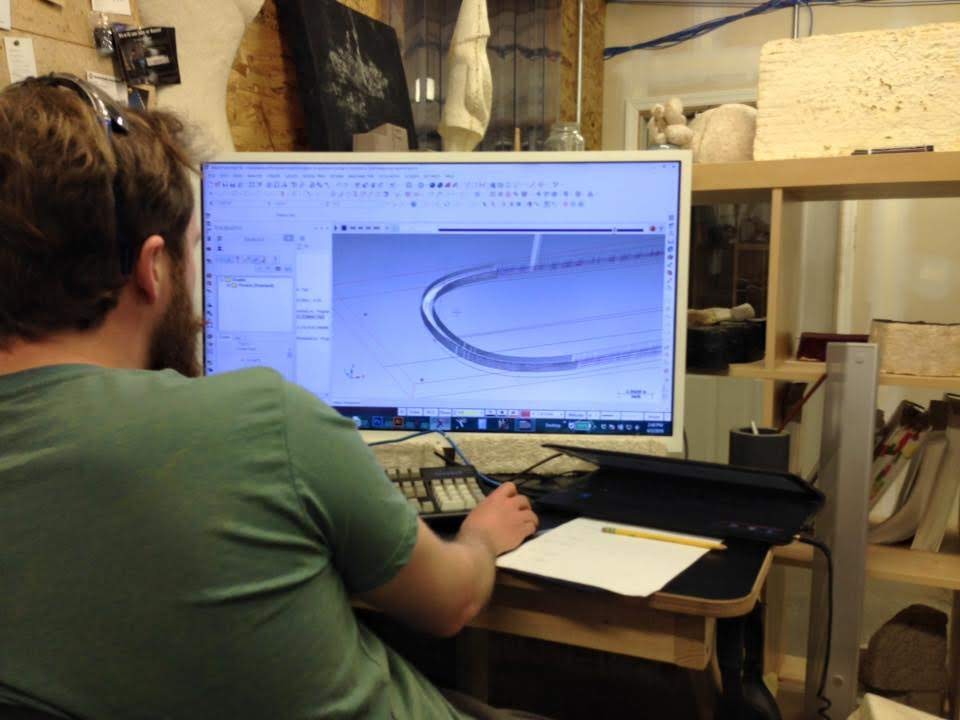

Creating the sidewall trench tool-path.
12321444_10209238573786058_3339904440366446478_n_10209238573786058
Cutting the trench!
12936714_10209238572666030_5677968563927209481_n_10209238572666030
Filling it with epoxy sidewall material. They guy from West System up-sold me on the pre-thickened product when I called…
12919855_10209238572306021_3474177327186545876_n_10209238572306021
…in hindsight the un-thickened, less viscous variant would’ve been ideal. This worked, but left me with some bubbles in the sidewall.
12963537_10209238571866010_1510011956924662933_n_10209238571866010
Another planing operation after the epoxy cured.
11223848_10209238571185993_7150780155684810258_n_10209238571185993
Drilled insert holes.
11694908_10209238571385998_700213951440662938_n_10209238571385998
Countersunk for inserts.
12923205_10209238570585978_3839067784503424835_n_10209238570585978

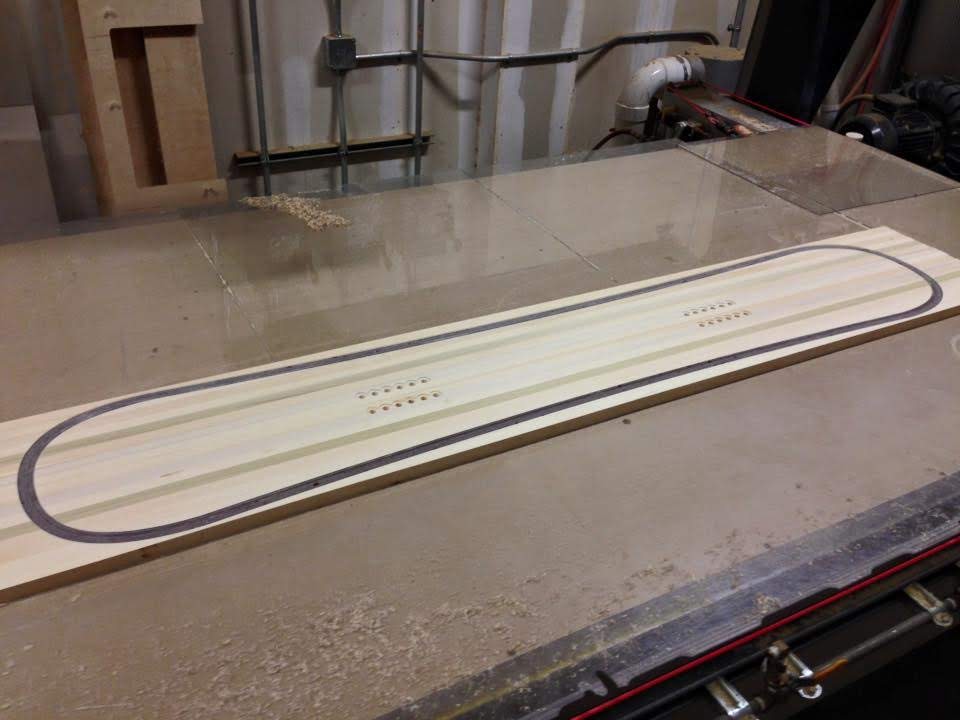

Relief trench to make room for the steel edge teeth (hard to see here)
12417746_10209238569465950_4822585615118192340_n_10209238569465950
The moment we’ve all been waiting for, the final planing and core profiling operation.
12936630_10209238569705956_3735291153004548178_n_10209238569705956

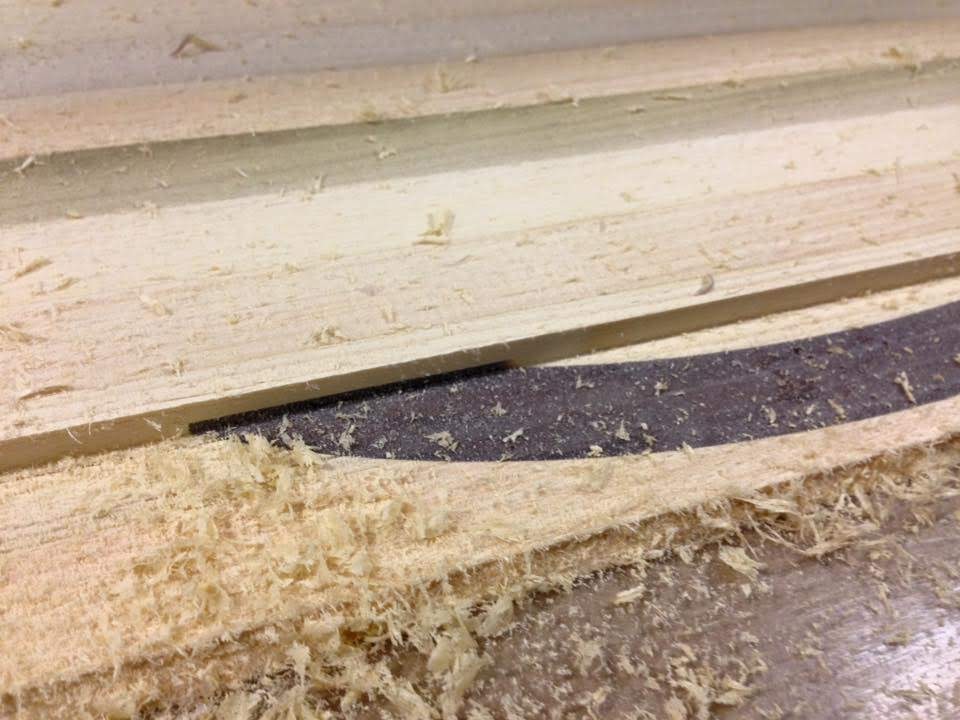

It was really fun to watch the sidewall emerge.
12920396_10209238569145942_1917355007471168345_n_10209238569145942
Final core profiling complete!
12928342_10209238568985938_121225029410271887_n_10209238568985938
Chopped off the extra stock and this core is ready for layup.
